The Isotemp 6040B1B000003 Basic 40L marine water heater features an 11-gallon stainless-steel tank with a high-output 230V/1200W immersion heater and an integrated mixing valve. With low-mounted heating components for uniform water temperature and inlet/outlet geometry that reduces cold-water mixing, it offers fast heat-up performance and high usable hot-water capacity for medium and large vessels.
- Description
- Ask a Question
-

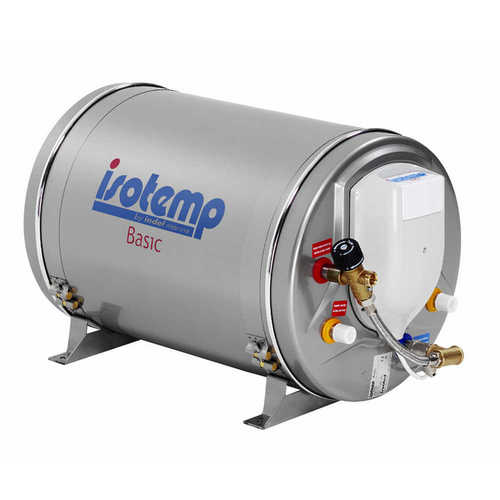

Isotemp 6040B1B000003 Basic 40L Water Heater 230V / 1200W with Mixing Valve
The Isotemp 6040B1B000003 Basic 40L (11-gallon) water heater is a high-performance stainless-steel marine heater designed for vessels that require faster heat-up cycles and increased hot-water output. Its upgraded 230V / 1200W immersion heater provides significantly higher heating capacity compared to the standard 750W version. Both the heating element and the engine-water heat exchanger are installed at the lowest point of the tank to ensure even temperature distribution across the full 40-liter volume.
The heater’s optimized inlet and outlet configuration minimizes cold-water mixing, maximizing the effective amount of hot water available. A built-in thermostat-regulated mixing valve ensures safe and stable outlet temperatures, making the system suitable for demanding onboard conditions.Key Features
- 40-liter (11-gallon) stainless-steel marine water heater.
- High-output 230V / 1200W immersion heating element for faster warm-up.
- Integrated thermostat-controlled mixing valve.
- Low-mounted heater and heat exchanger for uniform heating performance.
- Cold-/hot-water inlet geometry designed to reduce thermal mixing.
- Brushed stainless-steel tank for corrosion resistance and long service life.
- Ideal for medium and large yachts, cruisers and powerboats.
Technical Specifications
Part Number 6040B1B000003 Model Basic 40L – High Power 1200W Version Capacity 40 L / 11 gallons Voltage / Power 230V AC / 1200W Tank Material Brushed stainless steel Dimensions Length: 26 in
Outside Diameter (OD): 16 inUnit Weight 52 lbs (approx.) Special Instructions Includes thermostat-controlled mixing valve
Included in the Package
- Isotemp Basic 40L stainless-steel water heater
- 230V / 1200W immersion heating element
- Engine-water heat exchanger connections
- Thermostat-controlled mixing valve
- Installation and safety documentation
The Isotemp Basic 40L 1200W heater offers powerful heating performance, high hot-water availability and premium stainless-steel durability—making it an excellent choice for upgraded marine hot-water systems where faster heat-up and greater capacity are required.
Documents
Isotemp Basic Slim Water Heater Spare Parts List Size: 798,6 KbIsotemp Basic Slim Water Heater Manual Size: 6,6 Mb -
