ID
1123323
$ 3,143.33
1-2 weeks delivery time
-
+

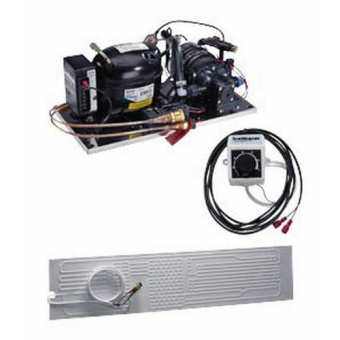

The Isotherm U400X133P12411AA Magnum “2507” is a seawater-cooled refrigeration unit with a BD50F compressor and an XL flat evaporator (11.8 × 54 in), supporting up to 14.1 cu.ft. as a refrigerator or 4.7 cu.ft. as a freezer for high-capacity marine installations. An integrated self-priming seawater pump provides strong thermal efficiency in warm climates, while the copper-nickel heat exchanger with zinc anode ensures excellent corrosion resistance. A mechanical thermostat offers simple and reliable temperature regulation, making the Magnum 2507 ideal for yachts requiring maximum cooling output and stable performance under heavy thermal loads.
- Description
- Ask a Question
-
Isotherm U400X133P12411AA – Magnum “2507” Water-Cooled Refrigeration System, BD50F, XL Flat Evaporator
The Isotherm U400X133P12411AA Magnum “2507” is a high-capacity seawater-cooled refrigeration system engineered for vessels requiring maximum cooling performance, especially in warm-water climates. Featuring a powerful Secop BD50F compressor and an extra-large flat evaporator measuring 11.8 x 54 inches, this unit supports fridge volumes up to 14.1 cu.ft. or freezer volumes up to 4.7 cu.ft. The integrated seawater pump provides continuous, self-priming circulation for superior heat removal, delivering significantly higher cooling efficiency than air-cooled systems. A copper-nickel heat exchanger equipped with a zinc anode ensures excellent corrosion resistance and long service life, while the mechanical thermostat provides straightforward and reliable temperature control for marine installations demanding high-output refrigeration.
Main Features
- High-capacity seawater-cooled refrigeration system
- Extra-large flat evaporator: 11.8 x 54 inches
- Refrigeration capacity up to 14.1 cu.ft.
- Freezer capacity up to 4.7 cu.ft.
- Secop BD50F compressor for strong, efficient cooling
- Integrated seawater pump, quiet and self-priming
- Copper-nickel heat exchanger with zinc anode for corrosion protection
- Mechanical thermostat for simple and stable control
- Ideal for tropical waters and heavy thermal-load environments
Technical Specifications
Parameter Value Part Number U400X133P12411AA Model Magnum “2507” Cooling Type Seawater-cooled with electric pump Evaporator Type XL flat plate Evaporator Size 11.8 x 54 inches Fridge Capacity 14.1 cu.ft. Freezer Capacity 4.7 cu.ft. Compressor Secop BD50F Compressor Dimensions 17 x 9 x 7 inches Weight 35 lbs Heat Exchanger Copper-nickel alloy + zinc anode Thermostat Mechanical Former Part Number 42507DB100000
The Magnum “2507” delivers exceptional seawater-cooled refrigeration capacity and long-term reliability, making it ideal for larger marine refrigeration installations requiring powerful, stable, and efficient cooling performance in warm climates.
Documents
Isotherm Magnum Cooling Units Spare Parts List Size: 232,3 Kb -
