ID
1303139
$ 1,686.92
1-2 weeks delivery time
-
+
The Isotherm U100X000L11311AA SP “2057” is a self-pumping seawater-cooled BD35F refrigeration system with a compact L-shaped evaporator (10 × 4 × 14 in), providing 3.5 cu.ft. fridge or 1.2 cu.ft. freezer performance for 100 L iceboxes. Its passive seawater heat exchanger requires no pumps or fans, ensuring high efficiency, low noise, and minimal battery consumption.
- Description
- Ask a Question
-

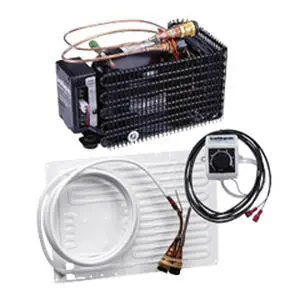

Isotherm U100X000L11311AA – SP “2057” Water-Cooled Refrigeration Unit
The Isotherm U100X000L11311AA SP “2057” is a compact seawater-cooled refrigeration system for 100-liter marine refrigerators. Using the SP self-pumping cooling method, the unit circulates seawater through a full-flow heat exchanger integrated into the sink drain hose, eliminating the need for fans or electric pumps. This passive system significantly reduces power consumption while providing strong cooling performance with the Secop BD35F compressor. The L-shaped evaporator (10 × 4 × 14 inches) with a click-on mounting bracket maximizes internal space and cooling efficiency. A mechanical thermostat ensures robust, simple temperature regulation.
Main Features
- Self-pumping seawater cooling (no pump or fan required)
- Designed for 100 L marine refrigerators
- L-shaped evaporator for efficient box integration
- Secop BD35F compressor for low power use and reliability
- Mechanical thermostat for simple temperature control
- Very quiet operation and reduced battery load
- Passive water movement prevents fouling and maintains heat exchange efficiency
Technical Specifications
Parameter Value Part Number U100X000L11311AA Former Part Number 42057CA100000 Model SP “2057” Cooling Type Self-pumping seawater cooling Evaporator Type Small L-shaped Evaporator Dimensions 10 × 4 × 14 inches Fridge Capacity 3.5 cu.ft. Freezer Capacity 1.2 cu.ft. Compressor Secop BD35F Compressor Dimensions 8 × 5 × 6 inches Weight 22 lbs
The SP “2057” is ideal for sailors seeking efficient, silent, and low-power refrigeration using the natural motion of the boat to drive seawater cooling.
-
