ID
1303138
$ 3,783.58
1-2 weeks delivery time
-
+
The Isotherm U200X066R12411AA Magnum “2505” is a seawater-cooled BD50F refrigeration system with a large oval evaporator (15 × 6 × 11 in) and evaporator door, supporting up to 7.1 cu.ft. fridge or 2.3 cu.ft. freezer volume. A mechanical thermostat provides simple control, while the seawater pump and copper-nickel heat exchanger with zinc anode deliver high cooling efficiency and durability for warm-climate marine installations.
- Description
- Ask a Question
-

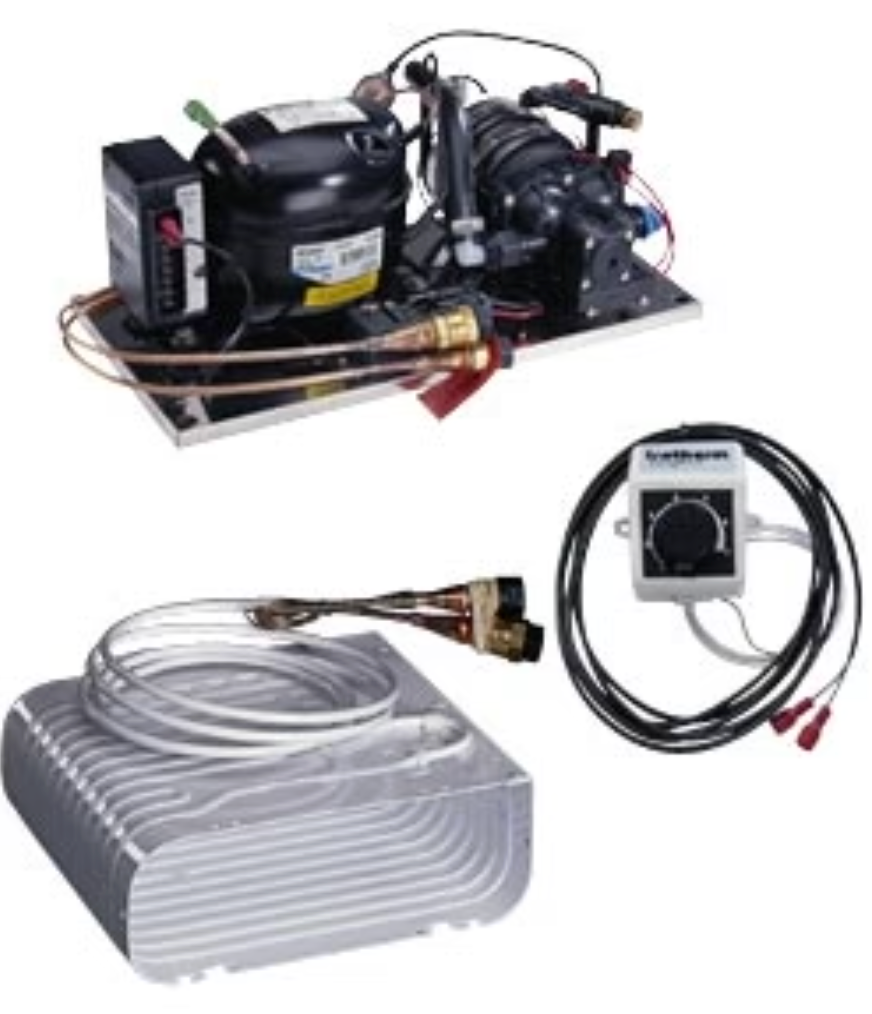

Isotherm U200X066R12411AA – Magnum “2505” Water-Cooled Refrigeration Unit
The Isotherm U200X066R12411AA Magnum “2505” is a seawater-cooled refrigeration unit designed for medium-to-large marine iceboxes, offering 7.1 cu.ft. refrigerator or 2.3 cu.ft. freezer capacity. It features a high-capacity oval evaporator (15 × 6 × 11 inches) with an evaporator door, paired with the Secop BD50F compressor for efficient cooling performance in warm climates. The system uses a mechanical thermostat for straightforward temperature control and includes an integrated seawater pump that is self-priming, quiet, and capable of withstanding dry running. A copper-nickel heat exchanger with zinc anode ensures excellent corrosion resistance in harsh marine environments.
Main Features
- Seawater-cooled refrigeration with integrated electric pump
- Large oval evaporator with door for improved temperature retention
- Capacity: 7.1 cu.ft. refrigerator / 2.3 cu.ft. freezer
- Secop BD50F compressor for high reliability and efficiency
- Mechanical thermostat for simple, robust control
- Copper-nickel heat exchanger with zinc anode for corrosion protection
- Self-priming seawater pump, quiet and dry-run capable
- Designed for warm-water, high-demand marine environments
Technical Specifications
Parameter Value Part Number U200X066R12411AA Former Part Number 42505DB100000 Model Magnum “2505” Cooling Type Seawater-cooled with electric pump Thermostat Mechanical temperature control Evaporator Type Oval evaporator with door Evaporator Dimensions 15 × 6 × 11 inches Fridge Capacity 7.1 cu.ft. Freezer Capacity 2.3 cu.ft. Compressor Secop BD50F Compressor Dimensions 17 × 9 × 7 inches Weight 33 lbs Heat Exchanger Copper-nickel + zinc anode
The Magnum “2505” system is an excellent choice for yachts requiring high-efficiency cooling with low power consumption and superior thermal performance in tropical sailing areas.
-
