The Isotherm U125X000L11311AA SP “2050” is a self-pumping seawater-cooled BD35F refrigeration system with a large L-shaped evaporator (16 × 7 × 8 in), supporting 4.4 cu.ft. fridge or 1.5 cu.ft. freezer capacity for 125 L marine iceboxes. Its passive seawater condenser provides high cooling efficiency, silent operation, and low battery consumption without pumps or fans.
- Description
- Ask a Question
-
Isotherm U125X000L11311AA – SP “2050” Water-Cooled Refrigeration Unit

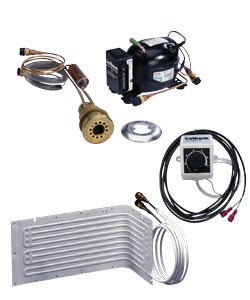

The Isotherm U125X000L11311AA SP “2050” is a seawater-cooled refrigeration unit engineered for 125-liter marine refrigerators. Using Isotherm’s SP self-pumping cooling system, it relies on hull movement to circulate seawater through a full-flow spiral heat exchanger integrated into the drain hose. This passive method eliminates the need for electric pumps or fans, resulting in silent operation, low power consumption, and high thermal efficiency. The system uses a Secop BD35F compressor paired with a large L-shaped evaporator (16 × 7 × 8 inches) and includes a click-on mounting bracket for easy installation. A mechanical thermostat provides simple and reliable temperature control.
Main Features
- Self-pumping seawater-cooled system (no pump or fan required)
- Optimized for 125 L marine refrigerators
- Large L-shaped evaporator for improved cooling coverage
- Secop BD35F compressor for efficient 12/24V operation
- Mechanical thermostat for straightforward control
- Very low noise and reduced battery consumption
- Passive seawater movement prevents fouling and maintains efficiency
- Click-on bracket for simplified installation
Technical Specifications
Parameter Value Part Number U125X000L11311AA Former Part Number 42050CA100000 Model SP “2050” Cooling Type Self-pumping seawater cooling Evaporator Type Large L-shaped Evaporator Dimensions 16 × 7 × 8 inches Fridge Capacity 4.4 cu.ft. Freezer Capacity 1.5 cu.ft. Compressor Secop BD35F Compressor Dimensions 8 × 5 × 6 inches Weight 24 lbs
The SP “2050” offers an extremely quiet, highly efficient refrigeration solution for sailors who want maximum cooling performance with minimal battery load.
-
