ID
1369892
$ 476.90
1-2 weeks delivery time
-
+

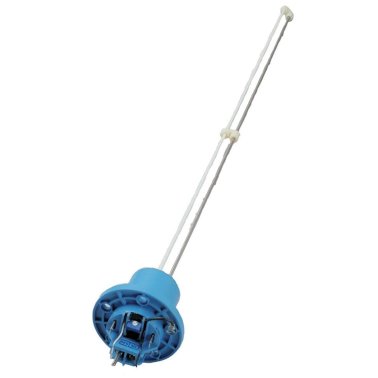

The VDO N02-240-404 capacitive fresh water level sensor provides stable, real-time tank level measurement for drinking water and fresh water tanks using a standard 4-20 mA output. Designed for tank depths from 600 to 1200 mm and compatible with 12 V and 24 V systems (6-24 V DC supply), it supports dependable level monitoring in marine, industrial, and fluid management installations, with a non-contact sensing design that helps deliver consistent performance over time.
- Description
- Ask a Question
-
Capacitive Fresh Water Tank Level Sensor with 4-20 mA Output
The VDO N02-240-404 is a capacitive fresh water level sensor built for accurate level measurement in drinking water and fresh water tanks. Using a 4-20 mA signal, it integrates easily with analog displays and fluid management systems, providing clean, continuous level feedback to support confident onboard and industrial water monitoring.
Compatibility
- Fresh water tanks only
- Drinking water tanks
- Tank depth adjustable from 600 mm to 1200 mm
- 12 V systems
- 24 V systems
- Plastic tanks
- Stainless steel tanks
- Not suitable for aluminum tanks
Product Details
- Brand: VDO (Veratron)
- Part Number: N02-240-404
- Component Type: Fresh water level sensor
- Sensor Technology: Capacitive (non-contact)
- Communication: Analog
- Typical Use: Fresh water level monitoring for tank instrumentation and management systems
Technical Specifications
Tank Depth Range 6001200 mm Length 600/1200 mm Output Signal 420 mA Operating Voltage 624 V DC Drilling Diameter 42 mm Mounting Flange Diameter 54 mm Installation Dimension 54 mm SAE 5-hole flange Outside Surface Diameter 71 mm Height Above Tank 32 mm Operating Temperature -30 6 6C to +70 6C Approved Liquid Fresh water Tank Type Plastic; stainless steel; not suitable for aluminum Connector Type AMP blade 6.3 x 0.8 mm Sensor Material Stainless steel (SUS 201) Sensor Signal Insulated return; not galvanically isolated Warning Contact None Grounded 20 Weight 2.50 kg EAN 7640178725072 HS Code 90269000 Reference Catalog VDO 2014 EN Full Program Catalog, Page 205
Features
- Capacitive, non-contact sensing design with no moving parts for long-term stable measurement
- Standard 4-20 mA output for dependable integration with displays and management systems
- Wide supply range supports common 12 V and 24 V onboard electrical systems
- Built for challenging environments across marine and industrial applications
-
