ID
1177162
$ 680.59
1-2 weeks delivery time
-
+
The VDO N02-240-904 capacitive waste water level sensor provides dependable tank-level measurement for 600 mm to 1200 mm tank depths, delivering a stable 4-20 mA analog output for easy integration with monitoring and control systems. Designed for secure mounting via a G 1 1/4 male thread and equipped with an adjustable warning contact, it supports accurate level tracking for applications such as shower water, kitchen water, toilet waste, and fresh water in plastic, stainless steel, or aluminium tanks, even in demanding environments from -30°C to +70°C.
- Description
- Ask a Question
-
Capacitive Waste Water Tank Level Sensor with 4-20 mA Output

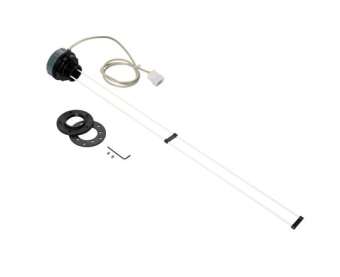

The VDO N02-240-904 is a high-precision capacitive level sensor built for reliable waste water monitoring in tanks. Designed for tank depths from 600 mm to 1200 mm, it outputs a standard 4-20 mA analog signal for straightforward connection to common control and display systems. An adjustable warning contact helps you set a custom alert point to reduce the risk of overflow and improve system supervision.
Compatibility
- Tank depth range: 600 mm to 1200 mm
- Tank materials: Plastic
- Tank materials: Stainless steel
- Tank materials: Aluminium
- Liquids: Shower water
- Liquids: Kitchen water
- Liquids: Toilet waste
- Liquids: Fresh water
Product Details
- Brand: VDO
- Part Number: N02-240-904
- Component Type: Waste water level sensor
- Sensor System: Capacitive
- Connector Type: VDO Model
- Packaging: Retail package
- Country of Origin: Germany
Features
- Standard 4-20 mA signal for consistent analog level feedback to monitoring and control systems
- Adjustable warning contact for configurable high-level alerts
- Designed for robust operation across a wide environmental range
- Secure threaded mounting supports stable installation on a broad range of tank types
- Galvanically isolated sensor signal supports reliable integration in mixed electrical environments
Technical Specifications
Output Signal 4-20 mA Communication Analog Operating Voltage 6-24 V DC Tank Depth 600-1200 mm Thread G 1 1/4 male Operating Temperature -30°C to +70°C Warning Contact Adjustable Sensor Signal Galvanically isolated Sensor Outside Surface Diameter 72.5 mm Sensor Hole Size 42 mm Mounting Flange 80 mm Sensor Height Above Tank 40 mm Installation Dimension 64 mm EAN Code 7640178725249 Weight 3.00 kg -
