ID
1369891
$ 265.35
1-2 weeks delivery time
-
+

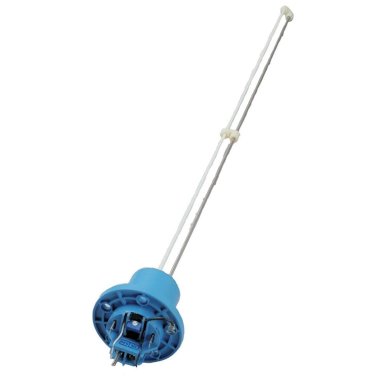

The VDO N02-240-402 capacitive fresh water level sensor provides accurate tank level measurement for drinking water systems using a standard 4 to 20 mA output for reliable integration with gauges and fluid management equipment. Designed for tank depths from 80 mm to 600 mm and suitable for 12 V and 24 V electrical systems (6–24 V DC supply), it uses a non-contact measuring principle with no moving parts for stable, low-maintenance operation in marine and industrial installations, and it can be shortened to suit the tank depth.
- Description
- Ask a Question
-
Capacitive Fresh Water Tank Level Sensor with 4 to 20 mA Output
The VDO N02-240-402 is a capacitive level sensor for fresh water and drinking water tanks. Using a non-contact measuring system, it delivers a stable 4 to 20 mA signal (empty to full) for integration with level indicators and fluid management systems. Built for marine and industrial use, it supports accurate monitoring of tank contents and can be shortened to match the tank depth.
Compatibility
- Drinking water tanks
- Fresh water tanks
- Plastic tanks
- Stainless steel tanks
- 12 V electrical systems
- 24 V electrical systems
- Devices with a 4 to 20 mA input
- Marine installations
- Industrial installations
Technical Specifications
Part Number N02-240-402 Sensor Technology Capacitive Application Fresh water only Tank Depth Range Adjustable 80 mm to 600 mm Base Length 600 mm Output Signal 4 to 20 mA (empty to full) Operating Voltage 6 to 24 V DC Operating Temperature -30 °C to +70 °C Sensor Outside Diameter 71 mm Sensor Net Hole Size 42 mm Mounting Flange Diameter 54 mm Installation Dimension 54 mm SAE 5-hole flange Sensor Height Above Tank 32 mm Tank Type Plastic, stainless steel, no aluminum Warning Contact None Connector Type AMP Blade 6.3 x 0.8 mm Barcode 7640178725065 Weight 1.50 kg Grounded 20°
Product Details
- Brand: VDO
- Component Type: Fresh water level sensor
- System Use: Tank level monitoring for drinking water and fresh water systems using a 4 to 20 mA input
- Included: Mounting flange and gasket; sealing kit N05-001-370
Features
- Non-contact capacitive measurement for reliable level sensing
- Wear-free design with no moving parts for maintenance-friendly operation
- Standard 4 to 20 mA output for dependable signal transmission in marine and industrial systems
- Can be shortened to suit the tank depth within the specified range
-
