ID
1176851
$ 1,026.16
1-2 weeks delivery time
-
+
The VDO N02-240-906 capacitive waste water level sensor provides stable, accurate tank level monitoring with a 4-20 mA analog output for easy integration into marine and industrial monitoring systems. Built for tank depths in the 1200 mm to 1500 mm range and compatible with plastic, stainless steel, and aluminum tanks, it supports multiple liquids such as shower, kitchen, toilet, and fresh water. With 6-24 V DC operation, galvanically isolated output with insulated return, and an adjustable warning contact, it delivers dependable signaling and configurable alarms for reliable tank management.
- Description
- Ask a Question
-
Capacitive Waste Water Tank Level Sensor with 4-20 mA Output

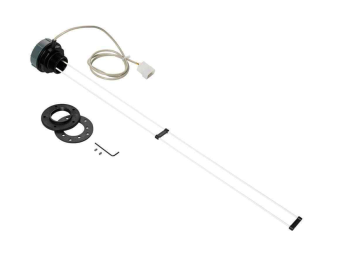

The VDO N02-240-906 is a high-precision capacitive level sensor designed for waste water level measurement in tanks, delivering a robust 4-20 mA analog signal for straightforward connection to control panels and monitoring displays. It is engineered for secure installation via a G 1-1/4 inch male thread and adds safety and signal stability through a galvanically isolated output with insulated return.
Compatibility
- Tank depth range: 1200 mm to 1500 mm
- Tank depth range (data sheet): 900 mm to 1500 mm
- Plastic tanks
- Stainless steel tanks
- Aluminum tanks
- Shower water tanks
- Kitchen water tanks
- Toilet water tanks
- Fresh water tanks
- Systems requiring a 4-20 mA analog signal
- Marine applications
- Industrial applications
Features
- Capacitive sensing for precise, repeatable level measurement
- 4-20 mA output for reliable long-distance signaling and easy system integration
- Galvanically isolated signal with insulated return to improve safety and reduce interference
- Adjustable warning contact for customizable level alarms
- Wide operating voltage supports 6-24 V DC electrical systems
- Secure mounting with G 1-1/4 inch male thread and mounting flange
- Designed for harsh environments with -30 0 c to +70 0 c operating temperature range
Product Details
- Brand: VDO
- Part Number: N02-240-906
- Component Type: Waste water level sensor
- Sensor Type: Capacitive
- Connector Type: VDO model
- Packaging: VDO sensor retail package
Technical Specifications
Output Signal 4-20 mA analog Operating Voltage 6-24 V DC Signal Type Galvanically isolated with insulated return Warning Contact Adjustable Operating Temperature Range -30 c to +70 c Tank Depth 1200 mm to 1500 mm Tank Depth Range (Data Sheet) 900 mm to 1500 mm Supported Tank Materials Plastic; stainless steel; aluminum Supported Liquids Shower water; kitchen water; toilet water; fresh water Thread G 1-1/4 inch male Installation Dimension 64 mm Net Hole Size 42 mm Mounting Flange 80 mm Sensor Outside Surface Part Diameter 72.5 mm Sensor Height Above Tank 40 mm Sensor Material Stainless steel SUS 201 EAN Code 7640178725256 Weight 1.50 kg -
