ID
1369887
$ 179.45
1-2 weeks delivery time
-
+
The VDO B00111301 VL Flex 52 multifunction marine instrument is a compact 52 mm dashboard display that connects to NMEA 2000 and supports analog and frequency inputs for real-time vessel monitoring. Designed for 12–24 V systems (10–32 V DC operating range), it can show one or two values per screen, adds clear graphic visualization with bar-graph style indication, and enables wireless NFC setup via the VL Flex smartphone app for fast configuration and confident on-water decision making.
- Description
- Ask a Question
-

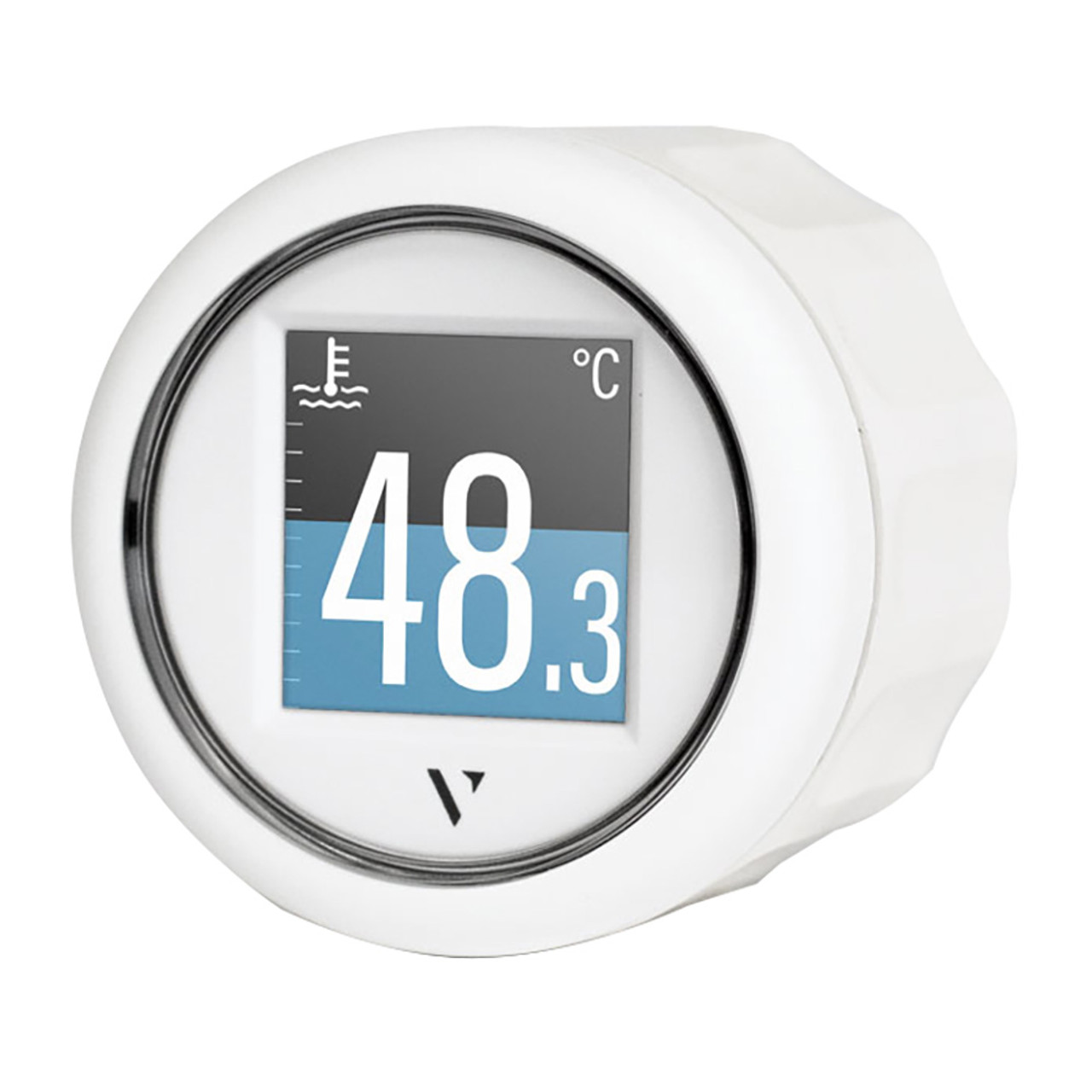

VL Flex 52 White Multifunction Marine Display for NMEA 2000
The VDO B00111301 (Veratron ViewLine VL Flex 52) is a versatile 52 mm multifunction instrument built for modern marine dashboards. Using a sun-readable 1.44-inch color TFT screen, it can replace multiple traditional analog gauges by presenting key vessel and engine data in a clear single- or dual-value layout. Integration via NMEA 2000 and configurable analog inputs makes it a strong choice for comprehensive onboard monitoring, while NFC wireless configuration through the VL Flex App simplifies setup.
Compatibility
- Marine vessels with NMEA 2000 networks
- 12–24 V DC onboard electrical systems (10–32 V DC operating range)
Product Details
- Brand: VDO
- Part Number: B00111301
- Category: Multifunction instruments
- Series: Veratron ViewLine Retail
- Color: White front plate, white backlight
- Functionality: Multifunction programmable; two instruments on one screen
- Configuration: NFC with smartphone app; passive antenna supports wireless configuration
- Mounting: Central spinlock nut
- Connector Type: Tyco 8-pin MQS (Tyco / Hirschmann MQS 8-pole)
Technical Specifications
Operating Voltage 10 to 32 V DC Current Consumption 50 mA (maximum backlight intensity) Display 1.44-inch sun-readable color TFT Resolution 125 x 125 pixels Screen Layout Single value or double value Installation Hole Diameter 52 mm (2 1/16 inch) Outside Diameter 59 mm (2 1/3 inch) Installation Depth 50 mm Locking Height with Spinlock Nut 0.5 mm to 20 mm Locking Height with Bracket 2 mm to 15 mm (optional) Flush Mount Optional kit A2C59510864 Flush Mount Installation Hole Diameter 48.1 mm Flush Mount Installation Thickness 1.5 to 3 mm Digital Input NMEA 2000 Analog Inputs Resistive (0–400 ohm settable), frequency (W, inductive, Hall, generator) Input 0–5 V, 0–400 ohm, frequency Analog Signal 0–5 V, 0–1000 ohm, frequency Front Protection Class IP67 (IEC 60529) Rear Protection Class IP52 Operating Temperature -20°C to +70°C Storage Temperature -30°C to +80°C Certifications EC, UKCA, NMEA 2000, UL Weight 0.40 kg
Features
- Sun-readable TFT display with clean graphics for quick interpretation at the helm
- Supports NMEA 2000 integration for seamless sharing of key data with onboard electronics
- Flexible input support for common marine sensors and signal types (voltage, resistive, frequency)
- Single- or dual-value layouts let you monitor two parameters on one screen
- Includes bar graph and alarm display elements for easier trend recognition and attention cues
- Standard 52 mm installation size helps retrofit from classic gauge cutouts
Supported Display Configurations
- Engine speed
- Boat speed
- Ammeter
- Voltmeter
- Battery state of charge
- Battery state of health
- Rudder angle
- Battery temperature
- Battery autonomy
- Engine hours
- Speed over ground
- Course over ground
- Boost pressure
- Depth
- Clock
- Fuel level
- Fresh water level
- Waste water level
- Trim position
- Coolant temperature
- Engine oil pressure
- Engine oil temperature
- Transmission oil pressure
- Transmission oil temperature
- Exhaust gas temperature
Retail Package
- Veratron VL Flex 52 White B00111301 instrument
- Spinlock nut
- White round bezel (interchangeable)
- Adapter cable with 8-pin MQS connector
- Safety instructions and installation manual
-
