VDO B00171101 – VMH-35-D Diesel GPS Multifunction Display 85 mm 12/24V with GNSS

ID 1369890

$ 482.75

1-2 weeks delivery time

- +

Add to cart

The VDO VMH 35-D diesel GNSS GPS multifunction display (B00171101) is a compact 85 mm instrument for modern dashboards that combines a sun-readable color hybrid screen, intelligent light sensing, and integrated high-performance GNSS. Built for 12/24V systems and certified for NMEA 2000, it also works as an analog and CAN to NMEA 2000 gateway, supports over 30 data types, and provides four analog inputs for external sensors—ideal for clean, information-rich monitoring on diesel installations.

Description
Ask a Question

VMH 35-D Diesel GNSS GPS Multifunction Display (85 mm, 12/24V)

The VDO B00171101 Veratron VMH 35-D is a premium multifunction display designed to modernize diesel instrumentation with a bright, sun-readable hybrid color screen and integrated GNSS positioning. It supports extensive data visualization and network integration, acting as an analog and CAN to NMEA 2000 gateway for streamlined connectivity across onboard electronics.

Compatibility

12 VDC electrical systems
24 VDC electrical systems
NMEA 2000 networks (IEC 61162-3)
SAE J1939 CAN input systems
RPM frequency signal inputs (0–4 kHz)
Resistive sensor inputs (0–400 ohm)

Product Details

Brand: VDO (Veratron)
Part Number: B00171101
Component Type: Diesel GPS multifunction display
Use Location: Dashboard and instrument panel
Primary Role: Displays engine, electrical, tank, navigation, and alarm data and bridges analog/CAN signals to NMEA 2000

Technical Specifications

Nominal Voltage	12/24 V
Operating Voltage Range	9–32 V
Current Consumption	≤ 150 mA (normal mode)
Sleep Mode Consumption	≤ 120 µA
Protection Class	IP X7
Outer Diameter	100 mm
Mounting Hole Diameter	85 mm
Mounting Depth	65 mm
Panel Thickness (With Spinlock Nut)	1–15 mm
Active Display Area	83 mm (optically bonded display)
Central Display	36.6 mm (1.44 in), 128 x 128 pixels
Display Type	Color hybrid display (IBN + 1.44 in TFT, optically bonded)
Lens	Mineral glass
Connectors	Molex MX-150 (12-pin); DeviceNet M12 (5-pin)
GNSS Systems	GPS, GLONASS, Galileo
GNSS Antenna	Integrated
Update Rate	10 Hz
Channels	72
Tracking Sensitivity	-165 dBm
Time to First Fix	1 s (hot start); 30 s (cold start)
Position Accuracy	2.5 m
Velocity Accuracy	0.05 m/s
Heading Accuracy	0.3°
Engine Speed Range	0–3000 or 0–4000 RPM (settable); max 4000 RPM
Operating Temperature	-20 °C to 60 °C
Storage Temperature	-30 °C to 80 °C
Enclosure Ring	Brushed stainless steel
Buttons	2 silicone buttons
Certification	NMEA 2000
EAN Code	7640190290466
Weight	0.50 kg

Features

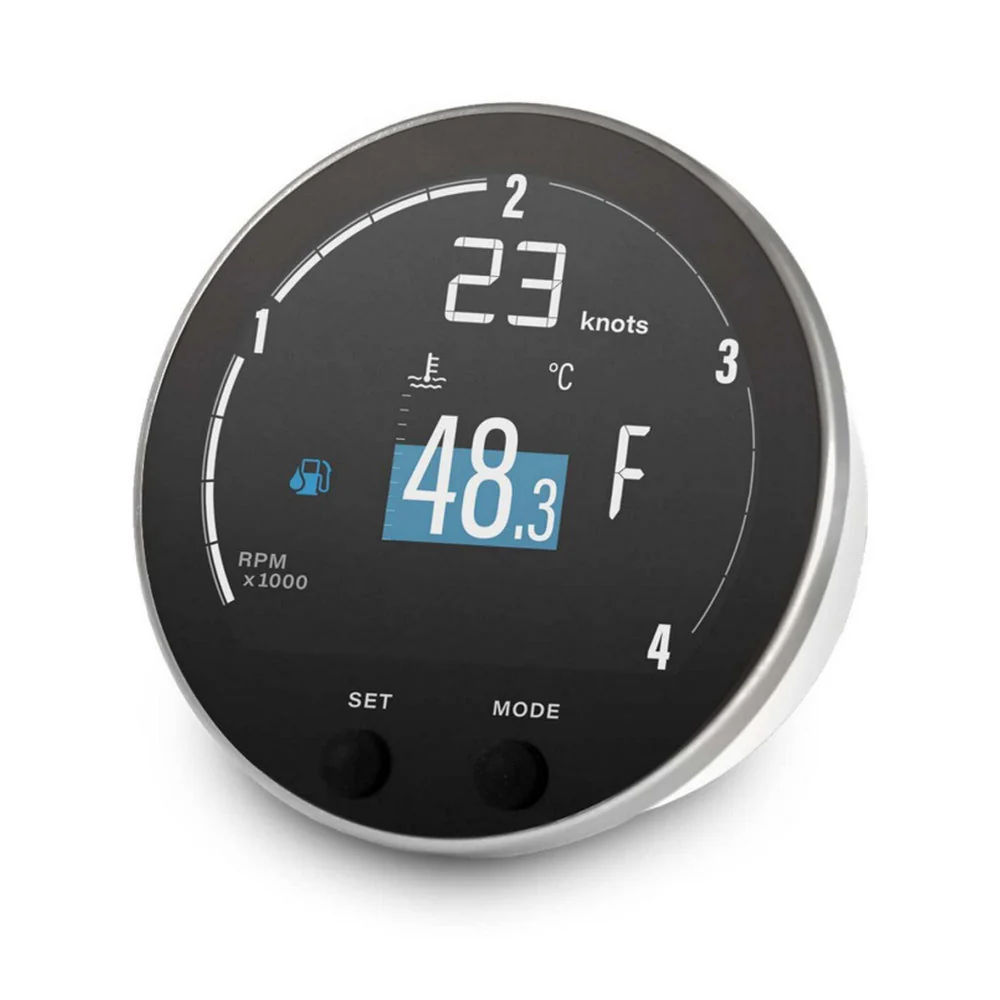

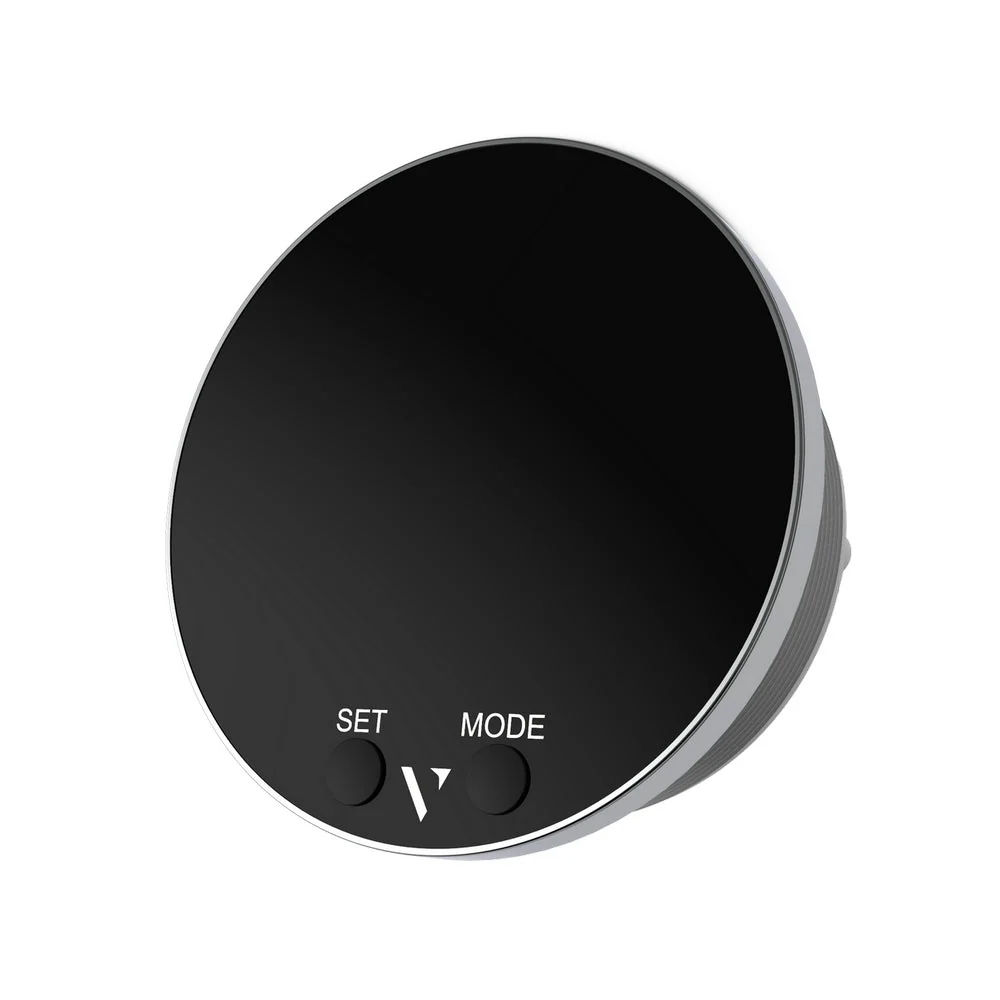

Sleek black-glass front with a brushed stainless-steel ring for a premium helm or dashboard finish
Sun-readable hybrid color display with an intelligent light sensor for clear visibility in changing light
Integrated GNSS receiver supporting GPS, GLONASS, and Galileo
Analog/CAN to NMEA 2000 gateway functionality for flexible system integration
Supports over 30 data types for comprehensive monitoring
Inputs include NMEA 2000, SAE J1939 CAN, frequency analog inputs (RPM), and analog resistive sensor inputs
Outputs include NMEA 2000, EasyLink (up to 16 VMH 14 satellites), and a warning contact (max 500 mA, non-inductive, normally open)
IP X7 protection class for robust, durable installation

Commonly Displayed Data

Engine speed (RPM), hour counter, trip distance, total fuel used
Fuel level, fuel consumption
Coolant temperature and coolant pressure
Engine oil temperature and engine oil pressure
Battery voltage, battery current, battery state of charge, battery temperature, battery state of health, autonomy
Boost pressure, trim, gear position
GNSS position, course over ground, boat speed (SOG or STW)
Freshwater level, wastewater level, seawater temperature, depth
6 alarm indicators

Packaging Contents

VMH 35-D multifunction display (master)
Central spinlock nut (85 mm)
Wire harness
Safety and installation instructions
