The VDO B00143501 VMH-35S GPS multifunction display is a compact 85 mm marine cockpit instrument built for versatile outboard-engine monitoring and NMEA 2000 integration. With resistive, 0-5 V, and frequency inputs plus an embedded analog-to-NMEA 2000 gateway, it consolidates key engine and navigation data on a sun-readable color hybrid TFT display. Its IP X7 sealing, mineral glass lens, brushed stainless-steel front ring, and Molex MX-150 and DeviceNet M12 connectors make it a robust, clean-install solution for modern helm panels.
- Description
- Ask a Question
-

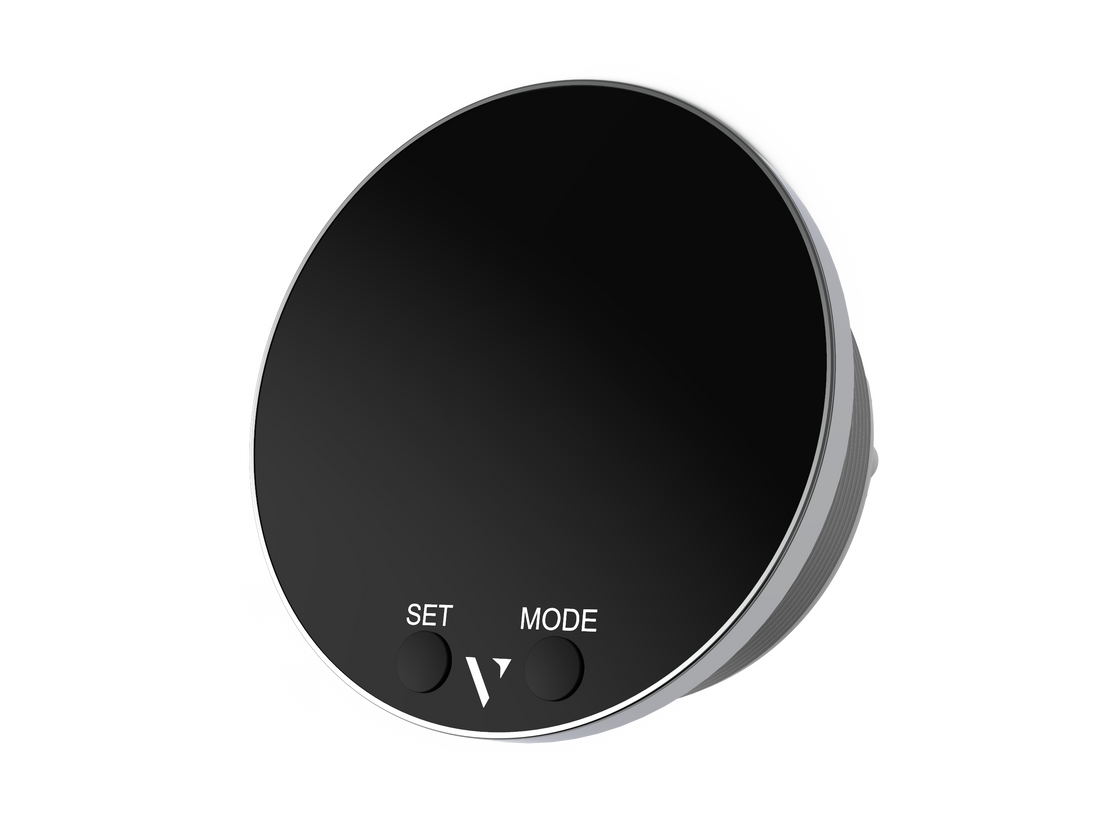

VMH-35S 85 mm GPS Multifunction Marine Display for NMEA 2000
The VDO B00143501 Veratron VMH-35S is a multifunction marine display designed to bring engine, vessel, and sensor data into one compact 85 mm cockpit instrument. Built around a sun-readable color hybrid display with a 1.44-inch TFT, it supports analog inputs (resistive, 0-5 V, and frequency) and connects to NMEA 2000 with an embedded analog gateway, making it ideal for streamlined outboard monitoring and networked dashboards.
Compatibility
- Outboard engines
Product Details
- Brand: VDO (Veratron)
- Part Number: B00143501
- Series: VMH
- Instrument Type: Multifunction display and gauge
- Connectivity: NMEA 2000, LIN, EasyLink
- Connectors: Molex MX-150 (12-pin), DeviceNet M12 (5-pin)
Features
- Sun-readable color hybrid display for clear visibility in bright cockpit conditions
- Embedded analog-to-NMEA 2000 gateway to integrate conventional sensors into a networked system
- Integrated high-performance GNSS receiver supporting GPS, GLONASS, and Galileo
- Supports analog resistive input, dedicated 0-5 V sensor input, and frequency input for RPM
- Marine-ready sealing with IP X7 protection class
- Premium front styling with a brushed stainless-steel ring and mineral glass lens
Technical Specifications
Nominal Voltage 12 V Operating Voltage Range 9 to 16 V Current Consumption Up to 150 mA (normal mode) Power Consumption ≤ 15 mA (normal mode); ≤ 120 µA (sleep mode) Protection Class IP X7 IP Class (Front) IPX9K (ISO 20653) IP Class (Rear) IPX9K (ISO 20653) with connector Mounting Hole 85 mm (3 3/8 inch) Outer Diameter 100 mm Mounting Depth 65 mm Active Area 83 mm (optically bonded display) Central Display 36.6 mm (1.44 inch), 128 x 128 pixel Front Ring Brushed stainless steel Lens Mineral glass (anti-fog) Buttons 2 silicon buttons Operating Temperature -20 °C to 60 °C Storage Temperature -30 °C to 80 °C Analog Inputs 1x resistive; 1x 0-5 V; 1x frequency Resistive Input Range 0-400 Ω (programmable) RPM Range 0 to 8000 RPM GNSS Systems GPS, GLONASS, Galileo GNSS Antenna Integrated, 10 Hz, 72 channels Tracking Sensitivity 165 dBm Time to First Fix (Hot Start) 1 s Time to First Fix (Cold Start) 30 s Position Accuracy 2.5 m Velocity Accuracy 0.05 m/s Heading Accuracy 0.3° NMEA Standard NMEA 2000 (IEC 61162-3) Data Connector Type NMEA 2000 Micro-C M12 Power Supply Connector Type Molex MX150 Outputs NMEA 2000; EasyLink; warning contact max 500 mA non-inductive (normally open) Flammability UL94 compliant EAN Code 7640190290206 Weight 0.50 kg
Displayed and Calculated Data
- Engine speed (RPM)
- Fuel level
- Fuel consumption
- Coolant temperature
- Coolant pressure
- Engine oil temperature
- Engine oil pressure
- Boost pressure
- Rudder angle
- Ammeter
- Battery voltage
- Battery state of charge
- Battery state of health
- Battery autonomy
- Battery temperature
- Trim
- Clock
- Hour counter (total and trip)
- Trip distance
- Total fuel used
- Total fuel
- Freshwater level
- Wastewater level
- Seawater temperature
- GPS position
- Course over ground
- Depth
- Boat speed (speed over ground or speed through water)
- Gear position
- 6 alarm telltales
Packaging Contents
- VMH-35 (0-5 V) multifunction display (master), part number B00143501
- Central spinlock nut (85 mm)
- Safety and installation instructions
- Wire harness B001066
- Intelligent Battery Sensor B000439
- Pole adapter B000684
-
