ID
1369888
$ 1,542.51
1-2 weeks delivery time
-
+

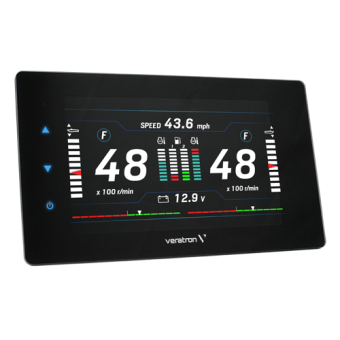

The VDO B00129201 VMH-70 multifunction marine display is a 7-inch TFT touchscreen instrument built to bring engine monitoring and navigation data into one clear helm view on 12/24V systems. Designed to integrate with onboard networks, it supports NMEA 2000, SAE J1939, EasyLink, and composite video, helping you consolidate critical parameters, camera views, and vessel information with durable marine-grade protection and intuitive control.
- Description
- Ask a Question
-
VMH-70 7-Inch Multifunction Touchscreen Display for Marine Systems

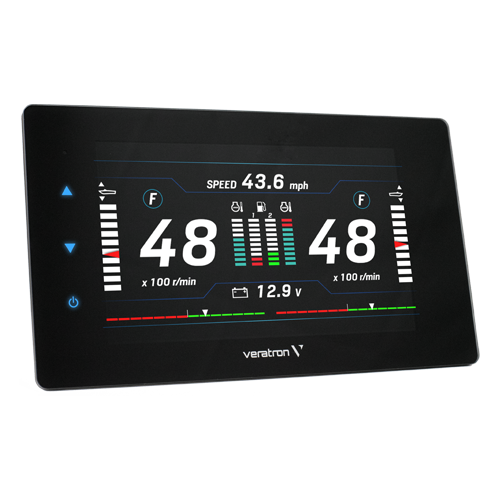

Built for modern helm integration, the VDO B00129201 (Veratron VMH-70) is a multifunction TFT display that presents detailed vessel and engine information on a bright 7-inch touchscreen. It is designed for monitoring engine parameters, viewing navigation data from networked devices, and supporting onboard situational awareness with optional camera inputs.
Compatibility
- Marine 12 V systems
- Marine 24 V systems
- Automotive 12 V systems
- Automotive 24 V systems
Product Details
- Brand: VDO (Veratron)
- Part Number: B00129201
- Component Type: VMH-70 Multifunction Marine Display
- Primary Role: Central display for engine monitoring and networked navigation data at primary or secondary helm stations
- Connectivity: NMEA 2000, SAE J1939, EasyLink, composite video
Features
- Sun-readable 7-inch IPS TFT touchscreen for clear viewing across changing light conditions
- Mineral glass front lens with anti-fog properties and a slim, durable front profile
- Integrated light sensor to automatically adjust brightness
- Two camera inputs for monitoring areas such as the engine compartment or deck (composite video)
- Multi-engine monitoring support for up to four engines with one display
- Flexible data acquisition via analog sensors or SAE J1939, with conversion and distribution on the NMEA 2000 network
- EasyLink expansion for distributing data and power to satellite gauges
- Smartphone configuration support via wireless AirWave technology and the Veratron App
Technical Specifications
Display Size 7 inch Resolution 800 x 480 Nominal Voltage 12 / 24 V (via EasyLink connection) Operating Voltage 9 - 32 V DC Current Consumption ≤ 900 mA (normal mode) + 100 mA for each EasyLink satellite gauge Outer Dimensions 220 x 128 mm Mounting Hole 118 x 206 mm Mounting Depth 52 mm Analog Inputs 2 CAN Ports Dual SAE J1939 CAN ports NMEA Standard NMEA 2000 - IEC 61162-3 Communication NMEA 2000, EasyLink Data Connector Type EasyLink2 - 3-Pin Superseal IP Protection IPX7; IPX9K (ISO 20653) front; IPX9K (ISO 20653) rear with connector Lens Mineral glass - anti-fog Weight 0.50 kg EAN Code 7640178729971 -
