The VDO A2C59514152 ViewLine turbo pressure gauge is a 52 mm black boost instrument for engine monitoring, giving clear 0 to 2 bar readings so you can track turbocharger performance and optimize efficiency. Designed for panel mounting with a 52 mm hole size and a dual anti-fog lens, it uses an analog input matched to a Veratron pressure sender (10 to 184 Ohm) and operates on 8 to 32 V DC, with integrated backlighting and a red warning LED to keep critical boost information visible at a glance.
- Description
- Ask a Question
-

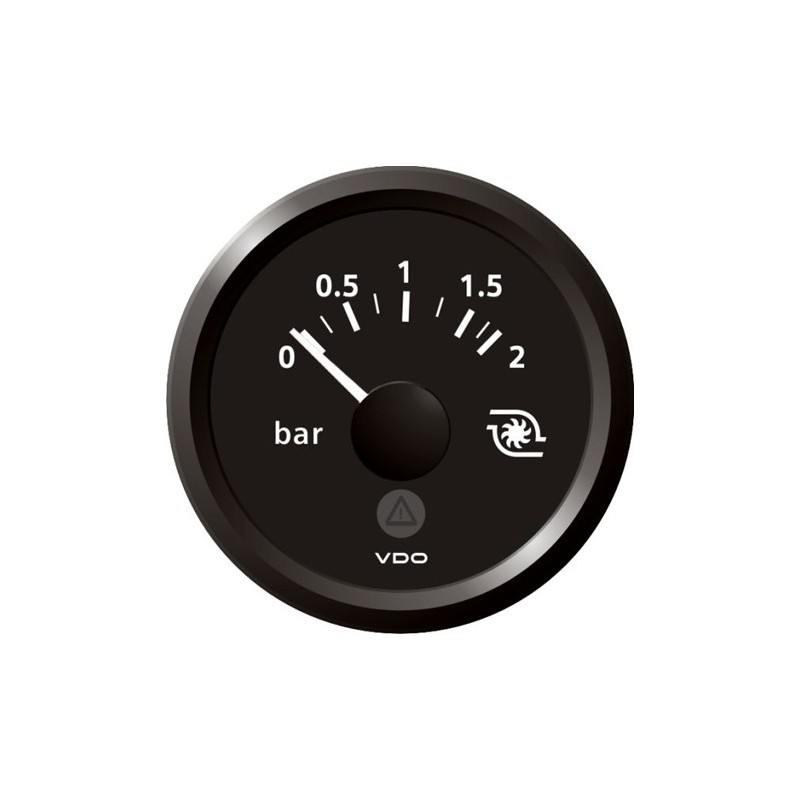

ViewLine Turbo Boost Pressure Gauge 52 mm Black 0 to 2 Bar
The VDO A2C59514152 ViewLine turbo pressure gauge by Veratron is a compact 52 mm dashboard instrument built for precise engine monitoring. With a 0 to 2 bar scale, it helps you keep turbo boost under control for consistent performance, while the black dial design and dual anti-fog lens deliver a clean, readable display in demanding conditions.
Compatibility
- VDO Engine Monitoring
- Veratron Engine Monitoring
- Veratron ViewLine Marine Instrument Panels (52 mm installation hole)
- Systems using a Veratron pressure sender signal input 10 to 184 Ohm
Product Details
- Brand: VDO
- Series: Veratron ViewLine Retail
- Component Type: Turbo pressure gauge
- Function: Turbo boost pressure indication for engine monitoring
- Color: Black
- EAN Code: 7640178727564
- HS Code: 90262000
- Weight: 0.45 kg
Technical Specifications
Pressure Measurement Range 0 to 2 Bar Sensor Signal Input Veratron pressure sender 10 to 184 Ohm Accuracy < 3.6 angular degrees Installation Hole Diameter 52 mm (2 1/16 Inch) Outside Diameter 59 mm (2 1/3 Inch) Installation Depth 50 mm Operating Voltage 8 to 32 Volt DC Current Consumption < 140 mA including warning LED Reverse Polarity Protection Yes (5 minutes) Short Circuit Protection Yes (1 minute) Deflection Angle 90° Dial Illumination Amber LED backlight 605 nm Pointer Illumination White LED backlight Warning Light Red LED (632 nm) Lens Dual anti-glare, anti-fog Front Protection Class IP67 (IEC 60529) Rear Protection Class IP52 Relative Humidity Maximum 95% Operating Temperature -30°C to +80°C (plastic bezel) Connection Hirschmann 8 pins MQS connector Certifications CE, DNV GL Mechanical Shock Continuous 25G, 6 ms, 1 Hz Mechanical Single Shock 100G, 11 ms Free Fall Test 1 meter, 3x Housing Flame Retarding UL94-VD Bezel Interchangeable triangular black Flush Mount Optional kit A2C59510864 Programming Veratron USB software kit
Features
- Monitors turbo boost pressure to support safe, efficient engine operation
- Clear 52 mm format suited to compact dashboards and instrument panels
- Dual anti-fog lens helps maintain readability in changing temperature and humidity
- Integrated illumination and warning LED enhance visibility and driver awareness
- IP67 front protection supports reliable use in exposed installations
Retail Package
- Veratron ViewLine Black A2C59514152 turbo pressure gauge
- Spinlock nut
- Interchangeable triangular black bezel
- Adapter cable with 8 pole MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
- Veratron pressure sender not included
-
