ID
995438
$ 86.39
1-2 weeks delivery time
-
+
The VDO A2C59514149 ViewLine turbo pressure gauge is a 52 mm black instrument designed for precise pressure monitoring on 12/24 V vehicle systems, using a 0–2 bar (0–30 PSI) dual scale. Built for clean visibility with a dual anti-fog lens and supported by a red warning LED with configurable warning points, it integrates into the ViewLine 52 mm instrument series and works with 10–184 Ohm electronic pressure senders to keep critical boost or pressure values easy to read and act on.
- Description
- Ask a Question
-

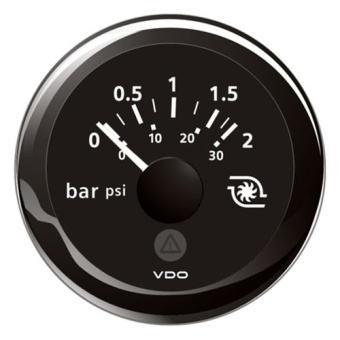

ViewLine 52 mm Turbo Pressure Instrument in Black
The VDO A2C59514149 is a ViewLine series 52 mm turbo pressure gauge with a black dial and round black bezel, designed to deliver accurate, quick-to-read pressure information on the instrument panel. With a 0–2 bar / 0–30 PSI scale and support for electronic pressure sender input, it helps you track key pressure values for confident performance monitoring.
Compatibility
- 12 V vehicle electrical systems
- 24 V vehicle electrical systems
- Systems using a 10–184 Ohm pressure sender input
- 52 mm instrument panel cutouts (2 1/16 inch)
Technical Specifications
Part Number A2C59514149 Series ViewLine 52 mm Pressure Range 0 to 2 bar Secondary Scale 0 to 30 PSI Signal Input 10 to 184 Ohm Operating Voltage 8 to 32 V DC Nominal Voltage 12 / 24 V Current Consumption Less than 140 mA including warning LED Accuracy Less than 3.6 angular degrees Deflection Angle 90° Dial Color Black Bezel Round black, interchangeable Lens Dual anti-glare, anti-fog Warning Light Red LED Connection 8-pin MQS connector (Tyco / Hirschmann) Front Protection Class IP67 (IEC 60529) Rear Protection Class IP52 Operating Temperature -30°C to +80°C (plastic bezel) Reverse Polarity Protection Yes, 5 minutes Short Circuit Protection Yes, 1 minute Panel Hole Diameter 52 mm (2 1/16 inch) Outside Diameter 59 mm (2 1/3 inch) Installation Depth 50 mm EAN Code 7640178723023 HS Code 90262000 Weight 0.45 kg Certifications CE, DNV GL
Product Details
- Brand: VDO
- Component Type: Turbo pressure gauge
- Instrument Family: ViewLine 52 mm series
- Intended Use: Pressure monitoring with electronic pressure senders (10–184 Ohm)
Features
- Dual-scale dial reads in bar and PSI for quick interpretation.
- Red warning LED with configurable warning point (via sender with warning contact or a make-point switch) for immediate attention to critical conditions.
- Dual anti-fog lens helps keep the dial clear in changing temperatures and humidity.
- Rugged electrical protection with reverse polarity and short-circuit protection for dependable operation.
- IP67 front protection supports long-term reliability in demanding installations.
Retail Package
- Turbo pressure gauge
- Spinlock nut
- Round black bezel (interchangeable)
- Adapter cable with 8-pin MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
- Pressure sender not included
-
