ID
1369884
$ 86.39
1-2 weeks delivery time
-
+
The ViewLine coolant temperature gauge VDO A2C59514170 is a marine-grade 52 mm instrument built for dependable engine cooling-system monitoring from +40°C to +120°C (105°F to 250°F). Designed for clear readability on board, it combines a black dial with amber LED backlighting, a white LED pointer, and a dual anti-glare, anti-fog lens. Using a Veratron NTC thermistor input (287.4–22.7 Ohm) and a Hirschmann 8-pin MQS connector, it delivers stable, accurate temperature indication in harsh marine conditions, backed by IP67 front protection and CE and DNV GL certification.
- Description
- Ask a Question
-

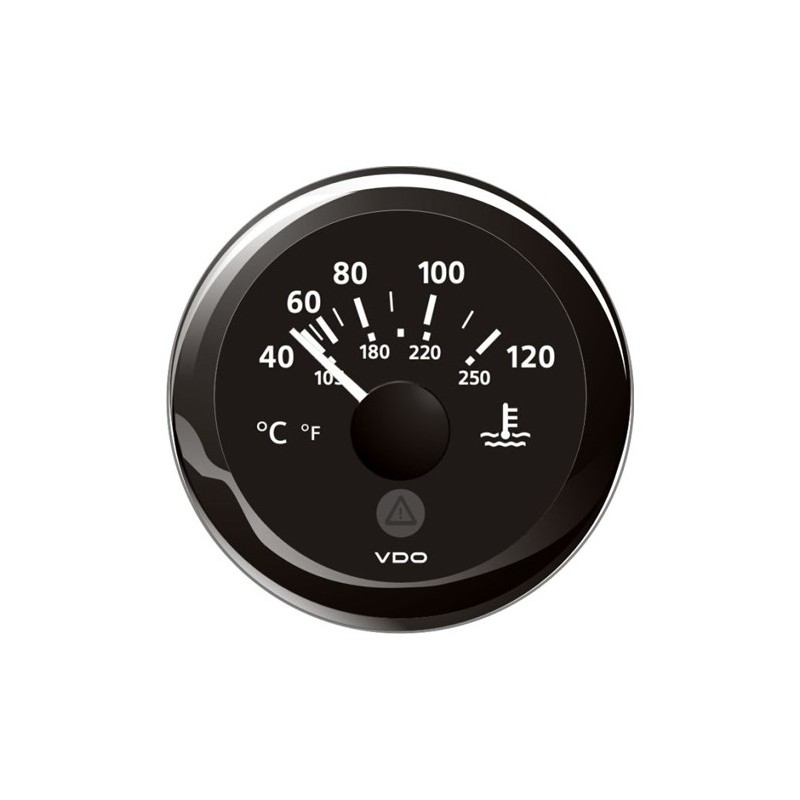

ViewLine 52 mm Coolant Temperature Instrument in Black, 120°C Scale
The VDO A2C59514170 ViewLine coolant temperature gauge is a robust, marine-ready panel instrument for monitoring engine coolant temperature as part of a vessel’s engine monitoring system. With a readable black dial, amber LED backlighting, and a dual anti-glare, anti-fog lens, it keeps temperature information visible in changing light and weather. It is designed to work with a Veratron NTC thermistor (287.4–22.7 Ohm) for accurate signal input and dependable temperature indication.
Compatibility
- Marine and industrial coolant temperature monitoring applications
- Boats
- Yachts
- Veratron NTC thermistor sender input: 287.4–22.7 Ohm
Technical Specifications
Part Number A2C59514170 Series ViewLine Function Coolant temperature Temperature Range +40°C to +120°C Secondary Scale 105°F to 250°F Panel Hole Diameter 52 mm (2 1/16 inches) Outside Diameter 59 mm (2 1/3 inches) Installation Depth 50 mm Locking Height with Spinlock Nut 0.5 mm to 20 mm Locking Height with Bracket 2 mm to 15 mm Operating Voltage 10 to 32 V DC Current Consumption Below 140 mA (including warning LED) Accuracy < 3.6 angular degrees Deflection Angle 90° Sensor Input Veratron NTC thermistor 287.4–22.7 Ohm Connection Hirschmann 8-pin MQS connector Dial Color Black Illumination Amber LED backlight, white LED pointer, red warning LED Operating Temperature -30°C to +80°C Front Protection IP67 Rear Protection IP52 Certifications CE, DNV GL NATO Part Number 6685-171298306 EAN 7640178723061 HS Code 90251900 Weight 0.20 kg
Product Details
- Brand: VDO
- Component Type: Coolant temperature gauge
- Typical Location: Dashboard / instrument panel
- Installation Option: Optional flush mount kit A2C59510864
- Programming: Compatible with Veratron USB software kit
Features
- Marine-grade design with IP67 waterproof front protection for harsh operating environments
- Clear, stable visibility using dual anti-glare and anti-fog lens
- Efficient operation with current consumption below 140 mA (including warning LED)
- Reliable electrical interface via Hirschmann 8-pin MQS connector
- Built-in protective functions: reverse polarity protection and short circuit protection
Retail Package Contents
- Coolant temperature gauge
- Spinlock nut
- Interchangeable round black bezel
- Adapter cable with 8-pole MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
-
