The VDO A2C59514163 ViewLine engine oil temperature gauge is a 52 mm black dashboard instrument built for VDO and Veratron engine monitoring, providing real-time oil temperature indication across +50°C to +150°C to help keep engines operating in a safe range. Designed for reliable signal processing from a Veratron NTC thermistor input (322.8–18.6 Ohm) and powered by 10–32 V DC, it combines a dual anti-fog lens, integrated LED lighting, and a red warning LED to support clear, at-a-glance diagnostics in demanding automotive and marine-style installations.
- Description
- Ask a Question
-

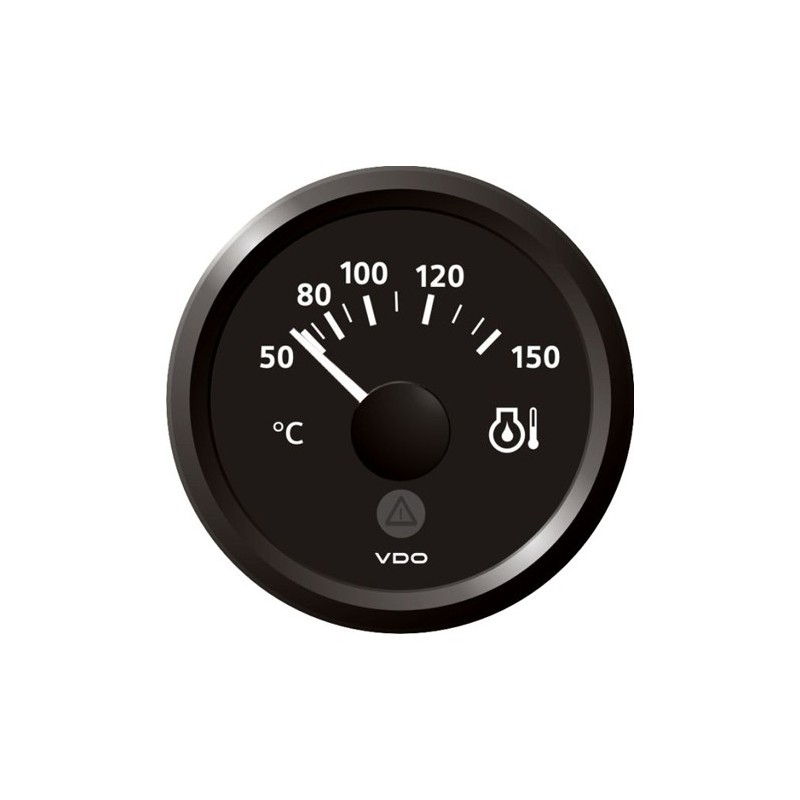

ViewLine 52 mm Engine Oil Temperature Gauge in Black
The VDO A2C59514163 is a Veratron ViewLine engine oil temperature gauge designed for engine monitoring on 52 mm instrument panels. With a measuring range of +50°C to +150°C, it delivers stable, real-time oil temperature indication to support preventative maintenance and confident operation. Its ViewLine design includes a dual lens with anti-glare and anti-fog properties and integrated LED lighting for clear readability.
Compatibility
- VDO engine monitoring installations
- Veratron engine monitoring installations
- Veratron ViewLine Marine instrument panels
Technical Specifications
Gauge Type Engine oil temperature gauge Temperature Range +50°C to +150°C Panel Hole Diameter 52 mm (2 1/16 inch) Outside Diameter 59 mm (2 1/3 inch) Installation Depth 50 mm Operating Voltage 10 to 32 Volt DC Current Consumption < 140 mA including warning LED Sensor Input Veratron NTC thermistor, 322.8–18.6 Ohm Accuracy < 3.6 angular degrees Deflection Angle 90° Connection 8-pin MQS connector (Hirschmann) Lens Dual, anti-glare, anti-fog Dial Color Black Dial Illumination Amber LED backlight 605 nm Pointer Lighting White LED backlight Warning Light Red LED (632 nm) Front Protection Class IP67 (IEC 60529) Rear Protection Class IP52 Standards CE, DNV GL certification EAN Code 7640178727625 HS Code 90251900 Weight 0.45 kg
Product Details
- Brand: VDO
- Part Number: A2C59514163
- Series: Veratron ViewLine
- Bezel: Interchangeable triangular black, clip-on
- Mounting: Central Spinlock nut mounting for 52 mm panel hole
- Programming: Veratron USB software kit
Features
- Provides accurate, at-a-glance oil temperature monitoring to support engine protection and performance tuning
- Dual anti-glare, anti-fog lens helps maintain readability in changing cockpit and cabin conditions
- Integrated LED illumination and red warning LED improve visibility for night operation and alerting
- Designed for straightforward panel installation with ViewLine mounting hardware
Retail Package Contents
- Veratron ViewLine black engine oil temperature gauge (A2C59514163)
- Spinlock nut
- Interchangeable triangular black bezel
- Adapter cable with 8-pole MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
- Engine oil temperature sender sold separately
-
