The VDO A2C59501911 marine and vehicle compass instrument provides reliable 0–360° course information in a sleek black 110 mm dashboard format for 12–24 V DC systems. Built for confident navigation on land or at sea, it integrates into VDO and Veratron navigation setups through the Veratron interface and NavBox Bus, using a sealed, durable design with mineral glass anti-fog lens for clear readability in demanding cockpit and helm environments.
- Description
- Ask a Question
-

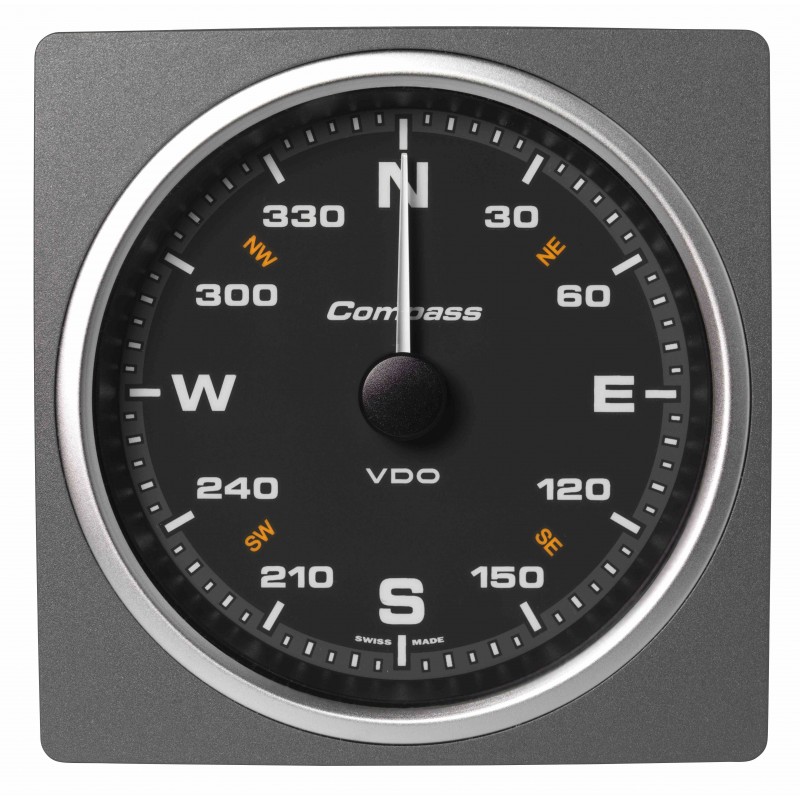

VDO 360° Course Compass Instrument in Black 110 mm Format
Designed for accurate heading display, the VDO A2C59501911 is a 0–360° compass instrument in the Veratron AquaLink series. Its 110 mm installation format and black styling suit modern dashboards and cockpits, while the 12–24 V DC operating range supports both automotive and marine electrical systems. Integration is handled via the Veratron interface and NavBox Bus for streamlined navigation system installation.
Compatibility
- 12 V DC electrical systems
- 24 V DC electrical systems
- VDO Navigation installations
- Veratron Navigation installations
- Veratron NavBox Bus
- NMEA 2000 networks (IEC 61162-3)
Product Details
- Brand: VDO
- Part Number: A2C59501911
- Component Type: Compass (course display)
- Series: Veratron AquaLink
- Dashboard/Cockpit Format: 110 mm installation dimension
- Function: Displays compass course information for confident navigation
Features
- Full-circle heading display: 0–360° measurement range for precise course awareness
- Marine-ready visibility: mineral glass lens with anti-fog treatment for clear reading
- System integration: designed to connect through the Veratron interface and NavBox Bus
- Rugged front protection: IP-rated front design as listed for demanding helm environments
- Service-friendly styling: interchangeable clip-on bezel with black square bezel model
Technical Specifications
Measurement Range 0 - 360° Operating Voltage 12 - 24 V DC (via EasyLink II) Power Supply Via Veratron interface Installation Dimension / Panel Hole 110 mm (4 3/8 inch) Lens Mineral glass, anti-fog Color Black / Aluminum Dial Scale Single Bezel Interchangeable, clip-on; black square model Communication NMEA 2000 NMEA Standard IEC 61162-3 Connector Type AMP Superseal IP65 3-pole Data Connector Type Veratron Bus 8-pin M12 (2x) Power Supply Connector Type Veratron Bus 8-pin M12 (2x) Front IP Rating IP67 (IEC 60529); IPX9K (ISO 20653) Rear IP Rating IPX9K (ISO 20653) with connector Dial Illumination White LED, not dimmable Pointer Color White pointer, white backlight Analog Signal No analog input Mounting Central spinlock nut (110 mm) EAN Code 7640178720220 HS Code 90141000 Weight 0.71 kg Packaging 1 piece retail packaging (Veratron AquaLink / VDO instrument retail) Article Status Orderable -
