The VDO A2C59501903 depth gauge is a 110 mm marine instrument that delivers precise depth readings across a 0–200 m double-scale dial, supporting confident navigation and situational awareness on the water. Built in a black housing with an anti-fog mineral glass lens, it integrates into VDO Navigation systems via the Veratron Nav Box Bus and NMEA 2000 communication, using dual M12 8-pole bus connectors for clean, reliable installation.
- Description
- Ask a Question
-

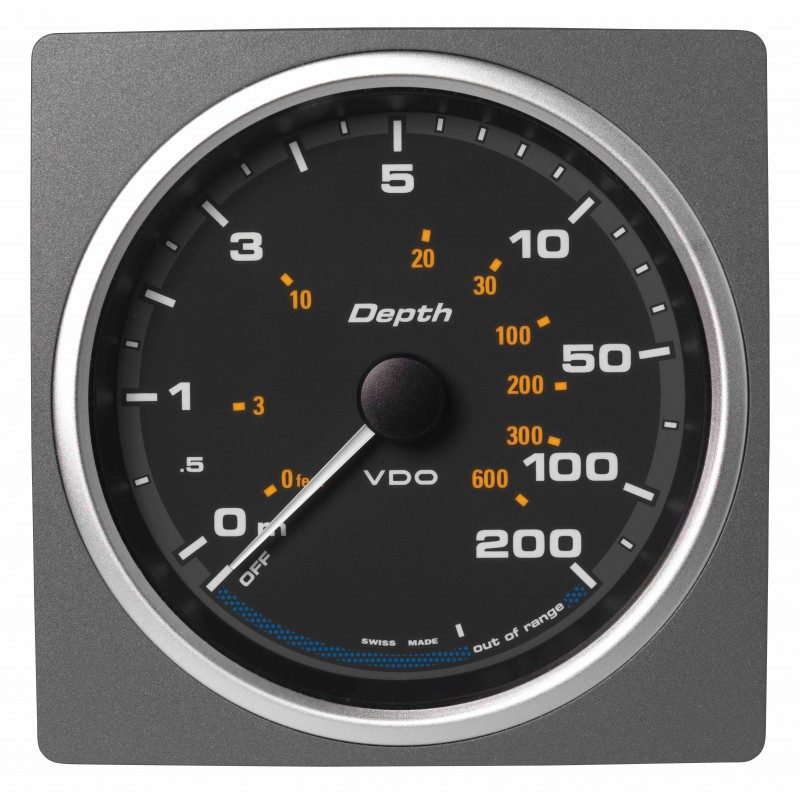

AquaLink Marine Depth Instrument 0–200 m in Black, 110 mm
The VDO A2C59501903 is a dedicated depth gauge for VDO Navigation and Veratron navigation networks, designed to provide clear, dependable depth information in demanding marine environments. With a 110 mm installation size and a double dial scale, it delivers quick, readable depth feedback for confident piloting and route planning.
Compatibility
- Veratron Nav Box Bus
- NMEA 2000 (IEC 61162-3)
Technical Specifications
Part Number A2C59501903 Function Depth Measurement Range 0 - 200 Meter / 0 - 600 Feet Dial Scale Double Installation Dimension 110 mm (4 3/8 inch) Lens Mineral glass, anti-fog Operating Voltage 12 - 24 V DC via Easylink II Connector Type M12 8-pole VDO bus connector (2x) IP Rating (Front) IP67 (IEC 60529) IP Rating (Front) IPX9K (ISO 20653) IP Rating (Rear) IPX9K (ISO 20653) with connector Bezel Interchangeable, clip-on Bezel Model Black square Dial Illumination White LED, not dimmable Warning Light Without Mounting Central spinlock nut, 110 mm Color Black / aluminum EAN Code 7640178720060 HS Code 90291090 Weight 0.71 kg Category Depth gauges Series Veratron AquaLink Application VDO Navigation Packaging 1 piece retail, Veratron AquaLink
Product Details
- Brand: VDO
- Component Type: Depth gauge
- Network Integration: Designed to connect via Veratron Nav Box Bus with NMEA 2000 communication
Features
- Clear depth information for safer, more informed navigation
- Double-scale dial for quick readability in meters and feet
- Anti-fog mineral glass lens for improved visibility in changing conditions
- Robust marine-ready interface using dual M12 8-pole VDO bus connectors
- Interchangeable clip-on bezel to match panel layouts and styling
-
