The VDO A2C59501782 ViewLine GPS speedometer is a marine instrument built to display speed over ground from 0 to 35 knots, with selectable knots, km/h, or mph and ±2.5% accuracy. Designed for helm visibility and dependable navigation data, it combines an integrated GPS antenna, NMEA 2000 input, amber LED dial lighting, and a rugged front IP67 waterproof rating, while adding practical functions such as trip, odometer, GPS time, and course over ground for boats and yachts.
- Description
- Ask a Question
-

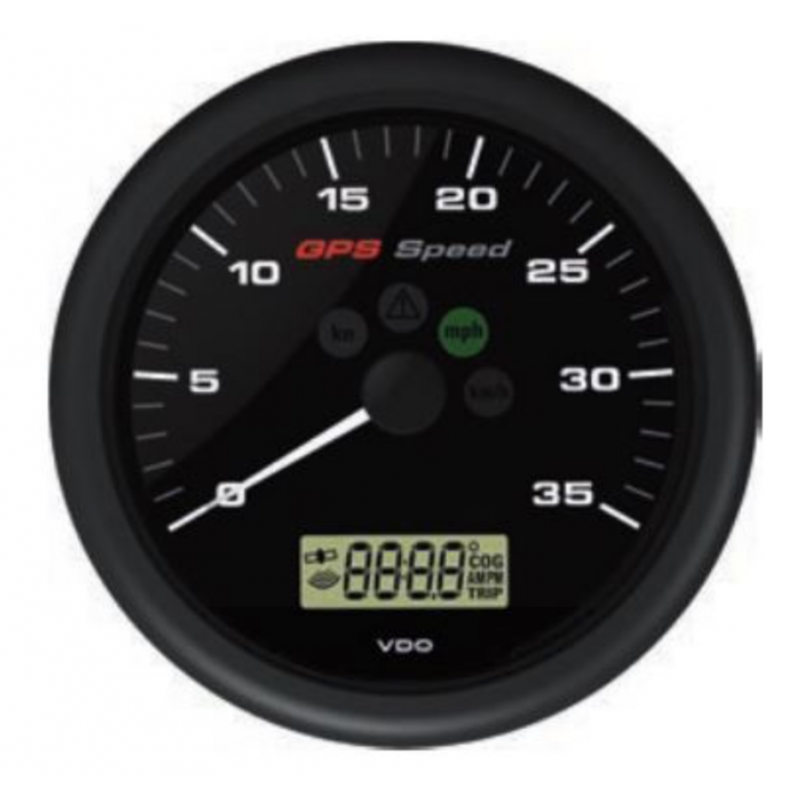

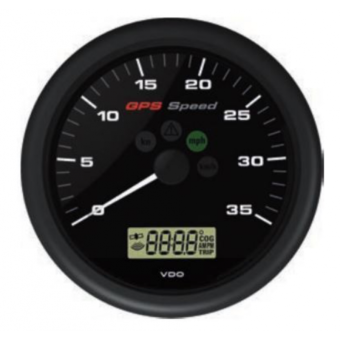

ViewLine Marine GPS Speedometer 0–35 kn, Black Dial, 110 mm Panel Cutout
The VDO A2C59501782 ViewLine GPS speedometer is a high-precision marine gauge for monitoring vessel speed over ground with clear, all-weather readability. With a built-in GPS antenna and NMEA 2000 connectivity, it integrates neatly into modern onboard networks while providing trip and navigation-related readouts such as trip, odometer, GPS time, and course over ground.
Compatibility
- Marine applications
- Boats
- Yachts
- NMEA 2000 marine networks
Product Details
- Brand: VDO
- Part Number: A2C59501782
- Component Type: GPS speedometer (marine instrument)
- Series: ViewLine
- Dial Color: Black
Features
- Displays speed in knots with selectable km/h or mph
- Built-in GPS antenna for stable speed data without a separate pickup
- Amber LED backlighting and anti-glare, anti-fog lens design for strong helm readability
- Red warning LED for critical alerts
- Designed for harsh onboard conditions with IP67 waterproof front protection and mechanical shock resistance
- Optional flush mount kit A2C59510864 for a clean, integrated dashboard finish
Technical Specifications
Speed Range 0–35 kn (also displays km/h or mph) Accuracy ± 2.5% of full scale reading Panel Cutout Diameter 110 mm (4 3/8 in) Outside Diameter 126 mm (5 in) Installation Depth 50 mm Locking Height (Spinlock Nut) 0.5–20 mm Locking Height (Bracket) 2–15 mm Operating Voltage 8–16 V DC Operating Voltage (Data Sheet) 12–24 V DC Current Consumption < 175 mA including warning LED Connection Hirschmann 8-pin MQS connector Connector Type (Data Sheet) Tyco 8-pin MQS Signal Input NMEA 2000 Front Protection IP67 Rear Protection IP52 Operating Temperature -30°C to +80°C Deflection Angle 240° Certifications CE, DNV GL Mechanical Shock (Continuous) 25G, 6 ms, 1 Hz Mechanical Shock (Single) 100G, 11 ms Free-Fall Test 1 m, 3x Housing Flame-Retardant Rating UL94-VD EAN 7640178721876 Weight 0.65 kg
Included in the Retail Package
- ViewLine GPS speedometer (black)
- Spinlock nut
- Interchangeable round black bezel
- Adapter cable with 8-pole MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
-
