The VDO A2C59501915 tachometer gauge is a 0–7000 RPM instrument for 12–24V DC systems, built to deliver clear, dependable engine speed monitoring for VDO engine monitoring setups. Designed as a 110 mm black dial display with mineral glass anti-fog lens, it integrates via the VDO bus using dual M12 8-pole connectors and connects to the Engine Box bus through the interface, supporting modern marine and vehicle instrumentation networks.
- Description
- Ask a Question
-

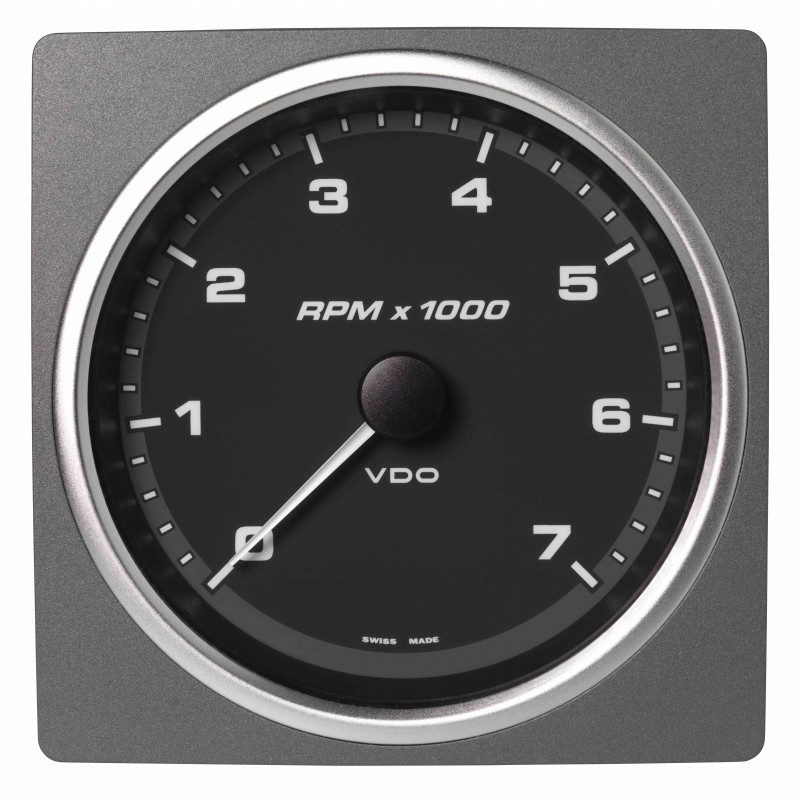

7000 RPM Black Tachometer Gauge in 110 mm Size
The VDO A2C59501915 is a tachometer instrument designed to display engine speed from 0 to 7000 RPM on a bold black dial. Built for 12–24 V DC electrical systems, it fits a 110 mm installation opening and is intended for VDO engine monitoring architectures, using a VDO bus connection for reliable data transfer.
Compatibility
- 12–24 V DC systems (via EasyLink II)
- VDO engine monitoring
- Engine Box bus connection
- NMEA 2000 (IEC 61162-3)
- NavBox
- CAN bus
Product Details
- Brand: VDO
- Part Number: A2C59501915
- Component Type: Tachometer gauge
- Functionality: Master tachometer (EasyLink)
- Connection: M12 8-pole VDO bus connector (2x)
- Power Supply: Via interface
Technical Specifications
Measurement Range 0–7,000 RPM Operating Voltage 12–24 V DC (via EasyLink II) Installation Dimension 110 mm (4 3/8 inch) Panel Hole Diameter 110 mm (4 3/8 inch) Color Black (black dial) with aluminum Lens Mineral glass, anti-fog Front Ingress Protection IP67 (IEC 60529) / IPX9K (ISO 20653) Rear Ingress Protection IPX9K (ISO 20653) with connector Bezel Interchangeable, clip-on; black square model Dial Illumination White LED, not dimmable Warning Light Without Analog Signal No analog input Mounting Central spinlock nut (110 mm) Data Connector Type 8-pin M12 (2x) Power Supply Connector Type EasyLink2, 3-pin Superseal EAN Code 7640178720305 HS Code 90291010 Weight 0.71 kg
Features
- Clear 0–7000 RPM readout for confident engine speed monitoring
- 12–24 V DC operating range suited to a wide variety of electrical systems
- Mineral glass lens with anti-fog properties for improved readability
- Designed for integrated monitoring via the VDO bus and Engine Box bus connection
- Interchangeable bezel with clip-on design for flexible dashboard styling
-
