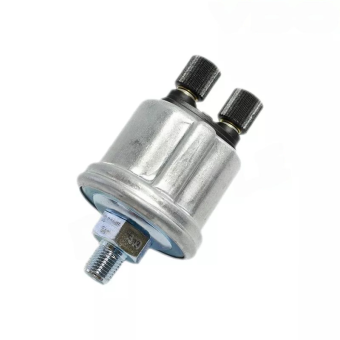

The VDO 360-081-030-041C pressure sender is a robust analog monitoring sensor for oil, fuel, and air pressure systems across automotive, industrial, and marine installations. Measuring 0–10 bar (0–145 psi) with a 10–184 Ohm output and single-pole common ground signal, it supports dependable gauge readings and engine monitoring, while the 2.00 bar ± 0.30 bar warning contact provides an extra safety alert as pressure falls. An M10 x 1 conical short thread, 6–24 V DC operation, and a -25°C to +100°C operating range make it a practical fit for demanding engine-room and under-hood environments.
- Description
- Ask a Question
-
VDO Analog 0–10 Bar Pressure Sensor With Warning Switch
The VDO 360-081-030-041C is an analog pressure sender built for reliable engine monitoring in automotive, industrial, and marine applications. Designed for oil, fuel, and air pressure circuits, it provides a stable resistive signal for instrument gauges and includes a dedicated warning contact that closes with falling pressure to support timely operator alerts.
Compatibility
- Automotive applications
- Industrial applications
- Marine applications
- Oil pressure systems
- Fuel pressure systems
- Air pressure systems
Product Details
- Brand: VDO
- Part Number: 360-081-030-041C
- Component Type: Pressure Sender
- Typical Use: Engine monitoring (including engine oil pressure)
- Signal Type: Analog, single-pole common ground
- Connector Type: M4 plastic knurled nut (sender and warning contact)
- Packaging: VDO sensor retail package
- Country of Origin: Germany
- EAN Code: 4103590690999
- HS Code: 90269000
- Weight: 0.12 kg
Features
- 0–10 bar measurement range for clear, accurate pressure monitoring
- 2.00 bar ± 0.30 bar warning contact for added system protection
- Warning contact closes with falling pressure for low-pressure alert functionality
- Resistive output (10–184 Ohm) suited to VDO-style engine monitoring instrumentation
- M10 x 1 conical short thread supports secure installation in tight engine bays
- Designed to perform in challenging environments from -25°C to +100°C
Technical Specifications
Pressure Measuring Range 0–10 bar (0–145 psi, 0–1000 kPa) Maximum Pressure 30 bar for up to 2 seconds Pressure Medium Oil, fuel, air Thread M10 x 1 tapered conical short Thread Length (L2) 11 mm Length of Thread + Nut (L1) 19.5 mm Installation Torque 30 Nm Operating Temperature -25°C to +100°C Operating Voltage 6–24 V DC Output / Resistance Range 10–184 Ohm Pressure Sensor Signal Single-pole common ground Warning Contact 2.00 bar ± 0.30 bar Warning Contact Switching Capacity Maximum 5 W (non-inductive) Warning Contact Behavior Closes with falling pressure Type of Connection A Alternative Notation 360 081 030 041C; 360/81/30/41C -
