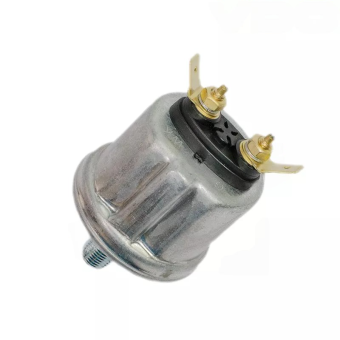

The VDO 360-081-030-053C pressure sender is a robust engine-monitoring sensor built for accurate 0–5 bar pressure measurement in automotive and industrial systems. Designed for engine oil pressure monitoring and other critical pressure circuits, it uses an M18 x 1.5 male thread for secure installation, supports oil, fuel, and air media, and provides an analog 10–184 ohm output with a common-ground signal. An integrated warning contact set at 0.25 bar helps trigger timely low-pressure alerts to protect engines and equipment.
- Description
- Ask a Question
-
0–5 Bar Pressure Sender with Warning Contact and M18 x 1.5 Thread
The VDO 360-081-030-053C is a precision pressure sender for engine monitoring and other pressure-critical automotive and industrial applications. Built for 0–5 bar measurement, it supports dependable system supervision by feeding an analog signal to the gauge or monitoring electronics. It is well suited for engine oil pressure monitoring and can also be used with oil, fuel, and air pressure media. A built-in low-pressure warning contact (0.25 bar) helps deliver fast notification when pressure drops.
Compatibility
- Automotive applications
- Industrial applications
Product Details
- Brand: VDO
- Part Number: 360-081-030-053C
- Component Type: Pressure Sender
- Primary Use: Engine oil pressure monitoring (engine monitoring)
- Pressure Media: Oil, fuel, air
- Signal Type: Analog
Features
- Accurate 0–5 bar pressure measurement for stable monitoring and control
- Warning contact closes with falling pressure to support low-pressure indication
- M18 x 1.5 male thread for secure mounting in pressurized circuits
- Designed for automotive and industrial environments with a wide operating temperature range
- Common-ground, single-pole sensor signal for straightforward integration
Technical Specifications
Pressure Measuring Range 0–5 bar (0–72.5 PSI, 0–500 kPa) Maximum Pressure 30 bar during 2 seconds Thread M18 x 1.5 male Thread Length L2: 12 mm Length Thread + Nut L1: 20.5 mm Tightening Torque 100 Nm Operating Temperature -25°C to +100°C Operating Voltage 6–24 V DC Resistance Range 10–184 ohms Signal Output Analog 10–184 ohms Sensor Signal Single-pole common ground Warning Contact 0.25 bar ± 0.15 bar Warning Contact Switching Capacity Maximum 5 W non-inductive Warning Contact Function Closes with falling pressure Sender Connector M4 AMP male 6.3 x 0.8 mm 50° Warning Contact Connector M4 AMP male 6.3 x 0.8 mm 50° Connector Type M4 flat connector 6.3 x 0.8 mm Type of Connection B Packaging VDO sensor retail package Country of Origin Germany EAN Code 4103590949639 HS Code 90269000 Alternative Notation 360 081 030 053C; 360/81/30/53C -
