ID
1177343
$ 143.39
1-2 weeks delivery time
-
+
The VDO 360-081-030-063C pressure sensing unit is built for accurate 0–10 bar monitoring of oil, fuel, or air pressure in automotive, marine, and industrial engine monitoring systems. Designed around a robust M14 x 1.5 mounting thread and a single-pole common-ground signal, it outputs an analog resistance signal (10–184 Ohm) for straightforward integration with VDO-style instrumentation, while the integrated warning contact (1.00 bar ± 0.15 bar) adds an extra layer of protection when pressure drops.
- Description
- Ask a Question
-

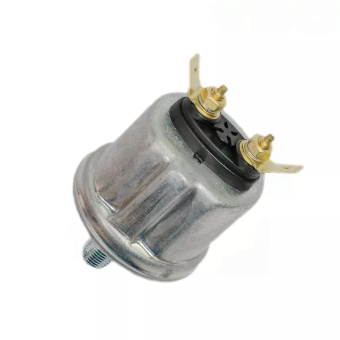

VDO Pressure Monitoring Sender 0–10 Bar, M14 x 1.5
The VDO 360-081-030-063C is a high-precision pressure sender for dependable monitoring of oil, fuel, or air pressure. It is designed for integration into engine monitoring systems using a single-pole common-ground analog output, and it includes an integrated warning contact that closes as pressure falls to support fast low-pressure alerts.
Compatibility
- Automotive engine monitoring systems
- Marine engine monitoring systems
- Industrial engine monitoring systems
- Oil pressure monitoring applications
- Fuel pressure monitoring applications
- Air pressure monitoring applications
Technical Specifications
Part Number 360-081-030-063C Pressure Measuring Range 0–10 bar (0–145 psi, 0–1000 kPa) Maximum Pressure 30 bar for 2 seconds Pressure Medium Oil, fuel, air Thread M14 x 1.5 (male) Thread Length (L2) 12 mm Length with Nut (L1) 20.5 mm Tightening Torque 60 Nm Operating Temperature -25°C to +100°C Operating Voltage 6–24 V DC Signal Type Analog Resistance Range 10–184 Ohm Sensor Signal Single-pole common ground Warning Contact Set Point 1.00 bar ± 0.15 bar Warning Contact Switching Capacity Maximum 5 W (non-inductive) Warning Contact Action Closes with falling pressure Connector (Sender and Warning Contact) M4 AMP male 6.3 x 0.8 mm, 50° Type of Connection B HS Code 90269000 EAN 4103590691002 Weight 0.12 kg Country of Origin Germany Packaging VDO sensor retail package Alternative Notation 360 081 030 063C; 360/81/30/63C
Product Details
- Brand: VDO
- Component Type: Pressure sender with warning contact
- Typical Use: Engine monitoring for pressure-critical circuits (oil, fuel, air)
Features
- Accurate 0–10 bar feedback for stable gauge readings and dependable monitoring
- Integrated low-pressure warning contact supports fast operator alerts and engine protection
- Analog resistance output (10–184 Ohm) suited for common monitoring and instrumentation setups
- M14 x 1.5 thread helps ensure a secure, service-friendly installation
- Designed for harsh operating environments in automotive, marine, and industrial duty cycles
-
