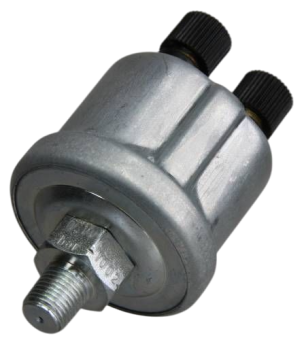

The VDO 360-081-030-049C pressure sender is a precision monitoring sensor for oil, fuel, and air circuits, built to support VDO engine monitoring instrumentation in automotive, marine, and industrial installations. Covering a 0 to 5 bar measurement range with an analog 10–184 ohm output, it uses a single-pole common ground signal and adds an integrated low-pressure warning contact set at 0.40 bar ± 0.10 bar to help protect engines under demanding operating conditions.
- Description
- Ask a Question
-
0 to 5 Bar Pressure Monitoring Sender With Warning Contact
The VDO 360-081-030-049C is a pressure sender designed for dependable system monitoring in oil, fuel, and air applications. Used as part of VDO engine monitoring instrumentation, it provides an analog resistance signal for precise gauge interpretation and includes a built-in low-pressure warning contact that closes with falling pressure for added operational safety.
Compatibility
- Automotive engine monitoring systems (6–24 V DC)
- Marine engine monitoring systems (6–24 V DC)
- Industrial engine and machinery monitoring systems (6–24 V DC)
Product Details
- Brand: VDO
- Component Type: Pressure Sender with Warning Contact
- Typical Systems: Oil pressure monitoring, fuel pressure monitoring, air pressure monitoring
- Signal Type: Single-pole common ground, analog resistance output
- Connections: M4 plastic knurled nut connectors for signal and warning contact
Features
- Measures pressure from 0 to 5 bar for accurate, stable readings in critical circuits
- Integrated warning contact supports low-pressure alerts for improved engine protection
- 1/8-27 NPTF male thread for secure installation across many monitoring setups
- Designed for 6–24 V DC electrical systems used in automotive, marine, and industrial environments
- Built to handle demanding conditions, including short pressure spikes up to 30 bar for 2 seconds
Technical Specifications
Part Number 360-081-030-049C Pressure Range 0 to 5 bar (0 to 72.5 PSI, 0 to 500 kPa) Maximum Pressure 30 bar for 2 seconds Pressure Medium Oil, fuel, air Thread 1/8-27 NPTF male Thread Length (L2) 11 mm Length With Nut (L1) 19.5 mm Installation Torque 30 Nm Operating Voltage 6–24 V DC Signal Output 10–184 ohm (analog) Sensor Signal Single-pole common ground Warning Contact Set Point 0.40 bar ± 0.10 bar Warning Contact Switching Capacity Maximum 5 W (non-inductive) Warning Contact Behavior Closes with falling pressure Operating Temperature -25 °C to +100 °C Connector Type M4 plastic knurled nut Type of Connection A Packaging VDO sensor retail package EAN Code 4103590949622 HS Code 90269000 Weight 0.71 kg Country of Origin Germany Category Pressure Senders Alternative Notation 360 081 030 049C; 360/81/30/49C -
