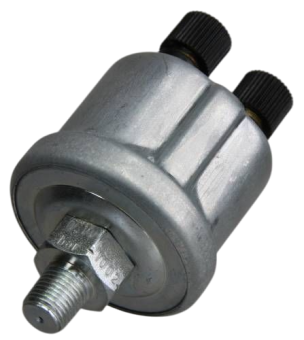

VDO 360-081-030-036C - Pressure Sender 0-5 Bar - M18

SKU: EX 360081030036C

€ 192,19

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The VDO 360-081-030-036C Pressure Sender is a reliable sensor designed for precise pressure monitoring from 0 to 5 Bar (0 - 72.5 PSI, 0 - 500 KPa). Featuring a durable M18 x 1.5 thread and a resistance range of 10 - 184 Ohm, it ensures accurate signal output for oil, fuel, and air systems. The built-in warning contact triggers at 0.50 Bar ± 0.15 Bar with a maximum switching capacity of 5 Watts, enhancing safety in critical applications. This sender is built to withstand up to 30 Bar for short durations and operates effectively in temperatures ranging from -25°C to +100°C. Its compact design, with a total thread length of 20.5 mm and 100 Nm torque specification, ensures easy integration into automotive, marine, and industrial systems. Supporting 6 - 24 V DC operation, this robust and versatile pressure sender delivers dependable performance in demanding environments.

Description
Ask a Question

VDO 360-081-030-036C - Pressure Sender 0-5 Bar - M18

Key Features:
- Pressure range: 0 to 5 Bar (0 - 72.5 PSI, 0 - 500 KPa) for precise pressure monitoring
- Thread: M18 x 1.5 for secure and reliable installation
- Sender resistance range: 10 - 184 Ohm for accurate signal output
- Single-pole common ground sensor signal for stable electrical performance
- Built-in warning contact: 0.50 Bar ± 0.15 Bar for enhanced safety
- Warning contact switching capacity: Maximum 5 Watt (non-inductive)
- Maximum pressure: 30 Bar for up to 2 seconds, ensuring durability in high-pressure conditions
- Operating temperature: -25°C to +100°C for reliable performance in extreme environments
- Compatible with oil, fuel, and air pressure systems
- Thread length (L2): 12 mm; total thread and nut length (L1): 20.5 mm
- Torque specification: 100 Nm for proper and secure mounting
- Connectors: M4 plastic knurled nut for both the pressure sender and warning contact
Specifications:
- Pressure Measuring Range: 0 to 5 Bar (0 - 72.5 PSI, 0 - 500 KPa)
- Maximum Pressure: 30 Bar (2 seconds)
- Thread: M18 x 1.5
- Total Length Thread + Nut (L1): 20.5 mm
- Thread Length (L2): 12 mm
- Torque: 100 Nm
- Operating Temperature Range: -25°C to +100°C
- Resistor Range: 10 - 184 Ohm
- Signal Type: Single-pole common ground
- Operating Voltage: 6 - 24 V DC
- Warning Contact: 0.50 Bar ± 0.15 Bar
- Warning Contact Switching Capacity: Maximum 5 Watt (non-inductive)
- Warning Contact Features: Closes with falling pressure
- Connectors: M4 Plastic knurled nut for both pressure sender and warning contact
- Compatible Mediums: Oil, fuel, air
Compatibility and Application:
- Designed for precise pressure monitoring in oil, fuel, and air systems
- Compatible with automotive, marine, and industrial applications
- Ideal for engines, transmissions, and hydraulic systems requiring accurate pressure readings
- Seamless integration with systems operating on 6 - 24 V DC voltage
- Optimized for extreme pressure and temperature environments
Benefits:
- Accurate pressure monitoring with a range of 0 to 5 Bar
- Durable design capable of withstanding up to 30 Bar for short durations
- Built-in warning contact enhances safety with a 0.50 Bar ± 0.15 Bar trigger point
- Secure installation with M18 x 1.5 thread and 100 Nm torque
- Reliable signal transmission with a resistance range of 10 - 184 Ohm
- Compact and robust design ensures long-lasting performance
- Supports multiple pressure-sensitive mediums, offering versatile applications
