The VDO 360-081-030-032C pressure sender is an analog engine-monitoring sensor for precise 0–10 bar pressure measurement in oil, fuel, or air circuits, supporting 6–24 V DC systems. Designed for stable signal output (10–184 Ohm) with a single-pole common ground, it also integrates a safety-focused warning contact that closes with falling pressure at 0.50 bar ± 0.15 bar, making it a strong choice for automotive, marine, and industrial installations using an M14 x 1.5 threaded port.
- Description
- Ask a Question
-

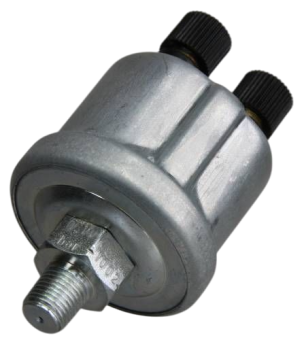

VDO Analog Pressure Sender 0–10 Bar with Warning Contact
The VDO 360-081-030-032C is a compact analog pressure sender built for dependable monitoring in engine oil pressure and other pressure-critical circuits. With a 0–10 bar measuring range and a built-in warning contact that closes with falling pressure, it supports both continuous indication (gauge or monitoring input) and an added safety threshold for critical systems. The M14 x 1.5 male thread and common-ground electrical design make integration straightforward across automotive, marine, and industrial engine monitoring setups.
Compatibility
- Automotive applications (oil, fuel, and air pressure systems)
- Marine applications (oil, fuel, and air pressure systems)
- Industrial applications (oil, fuel, and air pressure systems)
- Engine monitoring systems (6–24 V DC)
- Engines
- Transmissions
- Hydraulic systems requiring accurate pressure readings
Technical Specifications
Part Number 360-081-030-032C Pressure Measuring Range 0–10 bar (0–145 PSI, 0–1000 kPa) Maximum Pressure 30 bar (up to 2 seconds) Thread M14 x 1.5 male Total Length Thread + Nut (L1) 20.5 mm Thread Length (L2) 12 mm Installation Torque 60 Nm Operating Temperature -25°C to +100°C Operating Voltage 6–24 V DC Signal Output 10–184 Ohm (analog) Sensor Signal Single-pole common ground Warning Contact Set Point 0.50 bar ± 0.15 bar Warning Contact Function Closes with falling pressure Warning Contact Switching Capacity Maximum 5 W (non-inductive) Compatible Pressure Media Oil, fuel, air Connectors M4 plastic knurled nut for both the pressure sender and warning contact EAN Code 4103590690951 HS Code 90269000 Weight 0.13 kg Predecessor 360081030126C Alternative Notation 360 081 030 032C
360/81/30/32C
Product Details
- Brand: VDO
- Component Type: Pressure sender with warning contact
- Typical System Location: Pressurized oil, fuel, or air galleries/ports using M14 x 1.5 threaded mounting
- Use Case: VDO engine monitoring and safety threshold indication
Features
- Accurate 0–10 bar monitoring for dependable engine and system supervision
- Integrated low-pressure warning contact improves operational safety in critical circuits
- Common-ground, single-pole design supports stable analog gauge/monitoring signal behavior
- Built to handle demanding duty cycles, including short high-pressure spikes up to 30 bar
- Wide operating temperature range supports reliable performance in harsh environments
-
