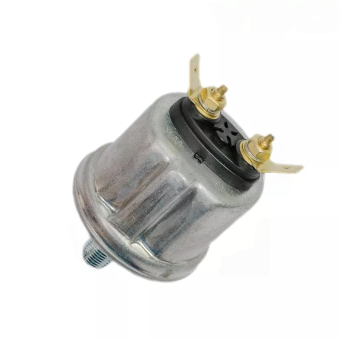

VDO 360-081-064-001C - Pressure Sender 0-5 Bar - M18

VDO 360-081-064-001C - Pressure Sender 0-5 Bar - M18

The VDO 360-081-064-001C Pressure Sender is designed for accurate pressure monitoring in engine systems, offering a pressure range of 0 to 5 Bar (0-72.5 PSI, 0-500 KPa). Featuring a durable M18 x 1.5 thread, this sender ensures reliable performance in a variety of applications, including engine oil, fuel, and air systems. With a resistor range of 10-184 Ohm and a dual-pole insulated return signal, it provides precise analog output. The pressure sender is built to handle pressures up to 30 Bar for brief periods, making it suitable for harsh conditions. Its operating temperature range from -25°C to +100°C ensures dependable function across a wide variety of environments. Equipped with a Bosch push-on connector, the VDO 360-081-064-001C integrates seamlessly into existing systems, making it a reliable choice for vehicle and industrial engine monitoring.

Key Features:

• Pressure range: 0-5 Bar (0-72.5 PSI, 0-500 KPa) for accurate measurement
• Thread size: M18 x 1.5 for secure installation
• Sender resistance range: 10-184 Ohm for precise signal output
• Operating voltage: 6-24 V DC for versatile applications
• Warning contact: 0.25 Bar ± 0.15 Bar for critical alerts
• Maximum pressure: 30 Bar for up to 2 seconds, handling extreme conditions
• Wide operating temperature range: -25°C to +100°C for reliability in various environments
• Pressure medium compatibility: Oil, fuel, air
• Signal type: Dual-pole insulated return for stable analog output

Specifications:

• Pressure range: 0-5 Bar (0-72.5 PSI, 0-500 KPa)
• Thread: M18 x 1.5 Male
• Sender resistance range: 10 - 184 Ohm
• Pressure sensor signal: Dual-Pole Insulated Return
• Warning contact: 0.25 Bar ± 0.15 Bar
• Warning contact switching capacity: Maximum 5 Watt non-inductive
• Warning contact features: Closes with falling pressure
• Operating voltage: 6-24 V DC
• Maximum pressure: 30 Bar (for 2 seconds)
• Torque: 100 Nm
• Operating temperature: -25°C to +100°C
• Pressure medium: Oil, Fuel, Air
• Connector type: Bosch push-on connector 2.8x0.8mm
• Warning contact connector: Bosch push-on connector 2.8x0.8mm
• Packaging: VDO Sensor retail package
• Sensor connector: M4 AMP Male 6.3 x 0.8 mm
• Country of origin: Germany
• Functionality: Engine oil pressure monitoring
• Signal output: 10 - 184 Ohm
• Communication: Analog
• Category: Pressure Senders

Compatibility and Application:

The VDO 360-081-064-001C Pressure Sender is ideal for use in a variety of engine monitoring applications, including engine oil pressure measurement and other critical systems. It is compatible with multiple vehicle and industrial engine monitoring systems, ensuring precision and reliability in performance. This sender is a key component for accurate engine pressure monitoring in both automotive and industrial systems, providing important data for system optimization.

Benefits:

• Precise pressure measurement for reliable engine performance
• Dual-pole insulated return for stable analog signal output
• Durable design suitable for harsh operating conditions
• Maximum pressure tolerance of 30 Bar for safe operation in extreme conditions
• Flexible voltage range of 6-24 V DC for diverse application needs
• Easy integration with Bosch push-on connectors for quick installation
