ID
1176695
$ 198.61
1-2 weeks delivery time
-
+

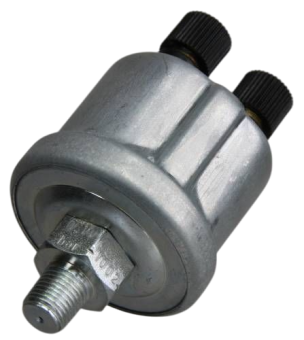

The VDO 362-081-002-001K DS pressure sender is a dual-signal pressure sensor for monitoring 0–25 bar in oil, fuel, and air systems, built to support dual-gauge installations such as flybridge dashboards. With a dual-pole insulated return signal, 5–90 Ohm dual resistance output, and 6–24 V DC operation, it provides stable, accurate readings for engine and drivetrain monitoring, including gear oil and transmission pressure applications, while the 1/8-27 NPTF thread helps ensure a secure installation.
- Description
- Ask a Question
-
Dual-Station DS Pressure Sender 0–25 Bar (1/8-27 NPTF)
The VDO 362-081-002-001K is a DS pressure sender designed for reliable analog pressure monitoring across oil, fuel, and air circuits. Its dual-pole insulated return output supports two-gauge (dual-station) installations—well-suited to marine flybridge setups—while also fitting automotive and industrial pressure monitoring needs such as gear oil and transmission pressure measurement.
Compatibility
- Oil pressure systems
- Fuel pressure systems
- Air pressure systems
- Dual-gauge, dual-station installations
- Flybridge dual-station gauge setups
- Gear oil pressure monitoring
- Automotive applications (6–24 V DC systems)
- Marine applications (6–24 V DC systems)
- Industrial applications (6–24 V DC systems)
Technical Specifications
Part Number 362-081-002-001K Pressure Measuring Range 0–25 bar (0–362 PSI, 0–2500 kPa) Maximum Pressure 50 bar (up to 2 seconds) Thread 1/8-27 NPTF Total Length Thread + Nut (L1) 19.5 mm Thread Length (L2) 11 mm Installation Torque 30 Nm Operating Temperature Range -25°C to +100°C Pressure Medium Oil, fuel, air Operating Voltage 6–24 V DC Resistance Range 5–90 Ohm (dual) Signal Type Dual-pole insulated return Warning Contact None Optional Warning Contact VDO A2C59510886 makepoint switch Connector M4 AMP male 6.3 x 0.8 mm flat connector Type of Connection B HS Code 90269000 EAN Code 410359069159 Weight 0.14 kg Catalog Reference VDO 2014 Vehicle Electronics Catalog, pages 126–127
Product Details
- Brand: VDO
- Component Type: DS pressure sender (dual-station)
- Use Case: Engine and drivetrain pressure monitoring (including gear oil and transmission pressure)
- Installation Interface: 1/8-27 NPTF threaded sender with electrical connector for gauge or instrumentation wiring
Features
- Supports dual-gauge layouts with a dual-pole insulated return signal—ideal for flybridge or dual-station monitoring
- Accurate analog output via 5–90 Ohm dual resistance range for stable gauge readings
- Designed for demanding environments with -25°C to +100°C operating capability
- Built for robust operation, tolerating 50 bar pressure spikes for short durations
- Secure mounting with specified 30 Nm installation torque and 1/8-27 NPTF thread
-
