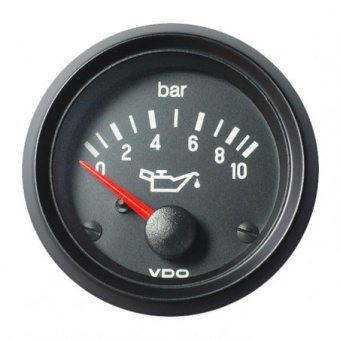

The VDO 350-040-015C Cockpit International engine oil pressure gauge is a 24V analog instrument built for accurate engine monitoring, displaying 0–10 bar (0–150 PSI) on a clear dual scale. Designed for 21.5–30 V DC electrical systems and a 52 mm panel cutout, it works with a VDO pressure sender signal (10–184 Ohm) to deliver dependable oil-pressure feedback to the cockpit or dashboard, supporting confident operation and fast detection of pressure changes.
- Description
- Ask a Question
-
VDO Cockpit International Oil Pressure Instrument 0–10 Bar 52 mm 24V
Built for robust engine monitoring, the VDO 350-040-015C Cockpit International oil pressure gauge provides a precise analog display of engine oil pressure on a dual bar and PSI scale. Intended for 24V vehicle electrical systems (21.5–30 V DC), it integrates into a standard 52 mm instrument opening and uses a matching VDO pressure sender signal to keep oil-pressure information clear and actionable.
Compatibility
- 24 V vehicle electrical systems (21.5–30 V DC)
- VDO engine monitoring installations using 10–184 Ohm pressure sender signals
Product Details
- Brand: VDO
- Part Number: 350-040-015C
- Series: VDO Cockpit International
- Instrument Type: Engine oil pressure gauge
- Application: VDO engine monitoring
- Packaging: OEM bulk pack (10 pieces)
Features
- Dual-scale dial reads in bar and PSI for quick interpretation
- Designed for stable operation on 24V systems (21.5–30 V DC)
- Works with a VDO pressure sender signal (10–184 Ohm) for consistent analog indication
- Floodlight illumination supports clear visibility in low-light conditions
- Durable Cockpit International design with front IP64 protection for demanding installations
Technical Specifications
Measurement Range 0 to 10 bar / 0 to 150 PSI Signal Type Analog Sender Signal Range 10 to 184 Ohm Operating Voltage 21.5 to 30 V DC Current Consumption (Without Illumination) 82 mA Panel Hole Diameter 52 mm (2 1/16 in) Outside Diameter 59.25 mm Installation Depth 67.5 mm Locking Height With Bracket 0.5 mm to 8 mm Sensor Signal Connection AMP male blade connector 6.3 x 0.8 mm (3x) Illumination Connection AMP male blade connector 6.3 x 0.8 mm (2x) Dial Color Black Pointer Red backlight Deflection Angle 90° Dial Illumination Floodlight 24V, 2 W (white, green, red) Lens Single anti-glare Bezel Triangular black (threaded ring) Bezel Interchangeable Yes (special tool required) Front Protection Class IP64 (DIN 40050), ozone proof, UV proof Rear Protection Class IP42 (DIN 40050) Operating Temperature -30°C to +85°C Reverse Polarity Protection Yes EMC According to EN 13309 and ISO 13766 Nominal Position NL 0 to NL 90 (DIN 16257) Housing Plastic, flame retardant Predecessor 350-921B HS Code 85122000 EAN Code 4103590690661 Country of Origin Malaysia Weight 0.50 kg Color Black
Included in the Pack
- VDO Cockpit International oil pressure gauge
- Steel bracket, zinc-plated and chromatized
-
