The VDO 362-081-003-001C DS pressure sender is a robust analog sender for engine monitoring that measures oil, fuel, or air pressure from 0 to 5 bar, with short-duration overpressure capability up to 30 bar for 2 seconds. Built for 6–24 V DC systems with a 5–90 ohm output and a common-ground style signal, it installs via a 1/8-27 NPTF thread and connects through an angled 50° M4 AMP male terminal; it can also be paired with the VDO A2C59510886 makepoint switch for an optional warning contact.
- Description
- Ask a Question
-
DS 0–5 Bar Pressure Sender with 1/8-27 NPTF Connection
Designed for dependable engine monitoring, the VDO 362-081-003-001C pressure sender provides stable analog pressure feedback for systems measuring oil, fuel, or air. With a 0–5 bar measuring range and a rugged design that tolerates brief pressure spikes, it supports accurate gauge indication and consistent operator awareness in automotive and commercial-vehicle installations.
Compatibility
- VDO A2C59510886 Makepoint Switch (optional warning contact)
- 6–24 V DC VDO engine monitoring installations using a 5–90 ohm analog sender input
- Systems using a 1/8-27 NPTF sender port for oil, fuel, or air pressure measurement
Technical Specifications

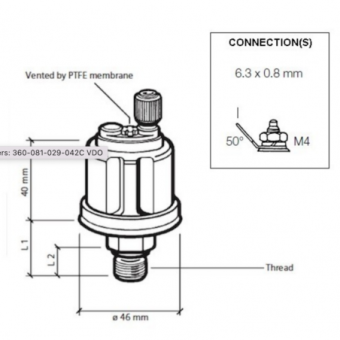

Pressure Measuring Range 0–5 bar (0–72.5 PSI, 0–500 kPa) Maximum Pressure 30 bar for 2 seconds Operating Temperature -25°C to +100°C Pressure Media Oil, Fuel, Air Operating Voltage 6–24 V DC Resistor Range 5–90 ohm Thread 1/8-27 NPTF Thread + Nut Length (L1) 19.5 mm Thread Length (L2) 11 mm Recommended Torque 30 Nm Signal Type Common ground Warning Contact None (optional makepoint switch supported) Connector M4 AMP male, 6.3 × 0.8 mm, angled 50° HS Code 90269000 EAN Code 4103590949813 Weight 0.14 kg Country of Origin Germany
Product Details
- Brand: VDO
- Part Number: 362-081-003-001C
- Component Type: DS pressure sender
- Typical Use: Engine oil pressure monitoring (also suitable for fuel and air pressure media)
Features
- Accurately measures 0–5 bar to support stable gauge readings and engine protection decisions
- Short-duration overpressure tolerance helps withstand transient pressure spikes
- 5–90 ohm analog output for integration with VDO monitoring instruments
- 1/8-27 NPTF thread for secure installation in common sender ports
- Supports optional warning-contact functionality when used with the VDO makepoint switch
-
