The VDO 437-025-002C Cockpit International analog speed instrument provides clear, accurate speed monitoring from 0 to 125 km/h (0 to 78 mph) for vehicles, boats, and industrial machinery. Built for 12–24 V DC electrical systems, it combines a wide 270° sweep with a black dial, red backlit pointer, and multi-color floodlight illumination (white, green, red) to keep readings easy to see in changing light. With IP64 front protection plus ozone-proof and UV-resistant design, it is a durable choice for harsh operating environments and supports RPM inductive, Hall, and blocking oscillator sensor signals for versatile installations.
- Description
- Ask a Question
-

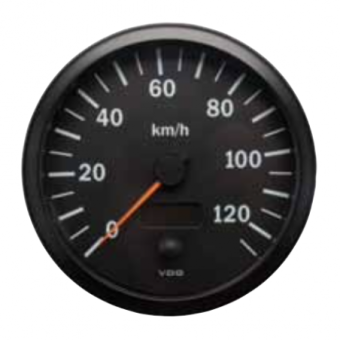

VDO Cockpit International Analog Speedometer 125 km/h, 140 mm
The VDO 437-025-002C Cockpit International speedometer is an analog dashboard instrument designed for dependable speed indication across demanding on-road, marine, and industrial environments. With a 0–125 km/h (0–78 mph) scale and a wide 270° pointer sweep, it delivers highly readable speed information, supported by a black dial, a red backlit pointer, and multi-color floodlight illumination.
Compatibility
- Vehicles
- Boats
- Industrial Machinery
Product Details
- Brand: VDO
- Part Number: 437-025-002C
- Instrument Type: Cockpit International speedometer
- Signal Inputs Supported: RPM inductive sensor, Hall sensor, blocking oscillator sensor
- Display Functions: Odometer, trip counter
- Electrical System: 12–24 V DC (operating voltage stated as 11–30 V DC)
- Protection: IP64 front, IP42 rear; ozone-proof and UV-resistant
Features
- Wide 270° deflection angle for fast, confident reading at a glance
- Floodlight illumination in white, green, and red to suit different cockpit and dashboard lighting preferences
- Designed for harsh conditions with IP-rated protection and weather-focused resistance characteristics
- Works with multiple sensor signal types for flexible integration in varied driveline and monitoring setups
- Reverse polarity protection for added electrical robustness
Technical Specifications
Speed Range 0 to 125 km/h (0 to 78 mph) Dial Color Black Pointer Red backlight Deflection Angle 270° Operating Voltage 12–24 V DC (11–30 V DC stated) Current Consumption (Without Illumination) < 100 mA Panel Hole Diameter 140 mm Outside Diameter 85 mm Installation Depth 91 mm Locking Height (Bracket) 0.5 mm to 12 mm Locking Height (Spinlock Nut) 0.5 mm to 23 mm (optional) Illumination Power 12 V: 3.4 W; 24 V: 3 W Connection 8-pole AMP male blade connector 6.3 x 0.8 mm Illumination Connection AMP male blade connector 6.3 x 0.8 mm (4x) Front Protection Class IP64 (DIN 40050) Rear Protection Class IP42 (DIN 40050) Operating Temperature -20°C to +70°C Compliance CE Country of Origin Switzerland Category Speedometers EAN Code 4103590691866 HS Code 90292031
Package Information
- Package Quantity: 6 pieces (OEM bulk)
- Includes steel bracket (zinc-plated and chromatized)
- Connecting material ordered separately
-
