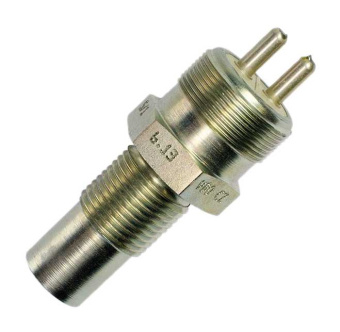

The VDO 340-804-005-013A inductive speed and RPM sender is built for precise tachometer and speedometer signal generation in engine monitoring systems. Using an M18 x 1.5 male mounting thread and a 2-pole Kostal connector, it outputs an insulated return signal up to 250 Hz (15,000 pulses per minute) across a -30°C to +140°C operating range, making it a dependable choice for robust vehicle and drivetrain speed sensing.
- Description
- Ask a Question
-
M18 Inductive Speed and RPM Sender for Tachometer Systems
The VDO 340-804-005-013A is an inductive tachometer and speed sender designed for accurate speed and RPM measurement in VDO engine monitoring installations. With a stable insulated return signal output and a rugged mechanical design, it helps instrumentation and control systems track rotational speed reliably, even in demanding temperature environments.
Compatibility
- Mercedes-Benz applications using OEM reference 006 542 69 17
- ZF applications using OEM reference 0501 309 245
Product Details
- Brand: VDO
- Part Number: 340-804-005-013A
- Component Type: Inductive tachometer and speed sender
- Application: VDO engine monitoring; speedometer and tachometer signal pickup
- Alternative Notation: 340 804 005 013A; 340/804/5/13A
Technical Specifications
Thread M18 x 1.5 male Frequency 250 Hz (15,000 pulses per minute) Measurement Range 0 to 250 Hz Operating Temperature -30°C to +140°C Overall Length 107.9 mm Length L1 18 mm Length L2 71.4 mm Length L3 72.63 to 72.20 mm Operating Voltage Independent Signal Output Insulated return Internal Resistance 1,050 Ohms ± 100 Ohms Connector 2-pole Kostal M24 x 1, 4 mm pin diameter EAN 4103590690425 HS Code 90318080 Weight 0.11 kg Country of Origin Czech Republic
Features
- Inductive sensing technology for consistent speed and RPM pulse generation
- 250 Hz output supports tachometer and speed measurement up to 15,000 pulses per minute
- M18 x 1.5 male thread for secure, repeatable mounting
- 2-pole Kostal connector with 4 mm pins for dependable electrical connection
- Insulated return signal design supports stable instrument and monitoring performance
-
