The VDO 340-804-005-007C inductive tachometer and speed sender is a rugged pulse sensor for engine monitoring and instrument signal pickup, delivering a stable 250 Hz signal (15,000 pulses per minute) across a wide -25°C to +140°C operating range. Built with an M18 x 1.5 male thread and a 2-pole Kostal M24 x 1 connector with 4 mm pins, it supports reliable installation and clean insulated-return signal output, with common cross-references for MAN, Scania, Volvo, and ZF applications.
- Description
- Ask a Question
-

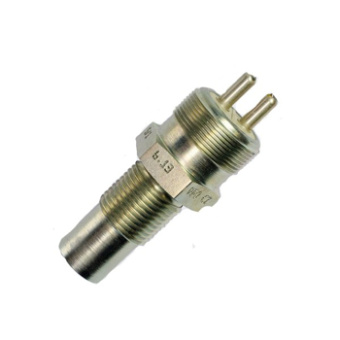

Inductive Speed and RPM Pulse Sender with M18 x 1.5 Thread
The VDO 340-804-005-007C is an inductive tacho and speed sender designed to generate a dependable pulse signal for speedometer and tachometer inputs in vehicle engine monitoring systems. With an insulated-return output and robust mechanical design, it helps ensure consistent RPM and speed readings in demanding operating environments.
Compatibility
- MAN OEM Reference: 88.25909-6002
- Scania OEM Reference: 264816
- Volvo OEM Reference: 4880804
- ZF OEM Reference: 6041 315 007
Product Details
- Brand: VDO
- Part Number: 340-804-005-007C
- Component Type: Inductive tachometer and speed sender
- Application: VDO engine monitoring
- Packaging: VDO sensor retail package
- Country of Origin: Czech Republic
- HS Code: 90318080
- EAN: 4103590690418
- Weight: 0.09 kg
- Alternative Notation: 340 804 005 007C; 340/804/5/7C
Features
- Inductive sensing for stable RPM and speed pulse generation
- Insulated-return signal output to support clean instrument and controller inputs
- M18 x 1.5 threaded body for secure mounting
- 2-pole Kostal connector interface for dependable electrical connection
- Designed to operate reliably across a wide temperature range
Technical Specifications
Thread M18 x 1.5 male Frequency 250 Hz (15,000 pulses per minute) Measurement Range 0 to 250 Hz Operating Temperature -25°C to +140°C Overall Length 71.5 mm Length L1 15 mm Length L2 35 mm Length L3 36.1 ± 0.1 mm Operating Voltage Independent Signal Output Insulated return Connector 2-pole Kostal M24 x 1, pin diameter 4 mm Internal Resistance 1,050 Ohm ± 100 Ohm -
