The VDO Cockpit International 332-040-001G voltmeter gauge is a 52 mm dashboard instrument built to monitor 24V battery and charging-system condition with a clear 18–32V DC measurement range. Designed for VDO engine monitoring installations, it fits a 52 mm panel cutout and uses an analog sensor signal range of 0–32V DC on battery power, with practical mounting geometry and bracket locking height from 0.5 mm to 8 mm for a secure, vibration-resistant installation.
- Description
- Ask a Question
-

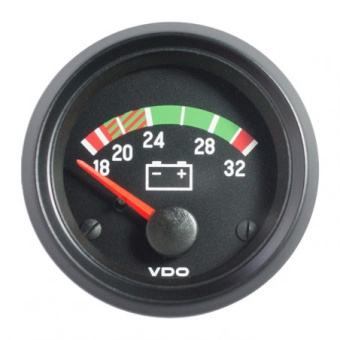

VDO Cockpit International 24V Voltmeter Gauge, 52 mm
Built for reliable electrical-system monitoring, the VDO 332-040-001G Cockpit International voltmeter is a 52 mm instrument for 24V DC installations. It displays system voltage across an 18–32V DC range, making it ideal for tracking battery condition and alternator output in VDO engine monitoring and marine or commercial-vehicle dashboards.
Compatibility
- 24V DC electrical systems
- VDO engine monitoring installations
Technical Specifications
Part Number 332-040-001G Series Cockpit International Measurement Range 18 to 32V DC Sensor Signal Range 0 to 32V DC (Battery power) Operating Voltage 21.5 to 30V DC Current Consumption (Without Illumination) 63 mA Panel Hole Diameter 52 mm (2 1/16 inch) Outside Diameter 59.25 mm (2 1/3 inch) Installation Depth 67.5 mm Locking Height with Bracket 0.5 mm to 8 mm Connection AMP male blade connector 6.3 x 0.8 mm (2x) Illumination Connection AMP male blade connector 6.3 x 0.8 mm (2x) Reverse Polarity Protection Yes Deflection Angle 90° Dial Color Black Pointer Red backlight Dial Illumination Floodlight: 12V, 3.4 Watt (White, Green, Red) and 24V, 3 Watt (Optional) Front Protection Class IP64 (DIN 40050), ozone proof, UV proof Rear Protection Class IP42 (DIN 40050) Operating Temperature -30°C to +85°C EMC Test According to EN 13309 and ISO 13766 Nominal Position NL 0 to NL 90 (DIN 16257) Lens Single, anti-glare Bezel Triangular black (threaded ring), interchangeable (special tool required) Housing Plastic, flame retardant Country of Origin Malaysia EAN Code 4103590925312 HS Code 90303370 Weight 0.23 kg
Product Details
- Brand: VDO
- Instrument Type: Voltmeter
- Model Line: Cockpit International
- Function: 24V battery condition and system-voltage monitoring
- Retail Package: 1 voltmeter
- Included in Retail Package: Steel bracket, zinc-plated and chromatized
- Note: Connecting material order separately
Features
- Clear 18–32V DC display for fast charging-system checks
- 52 mm format for a clean, consistent Cockpit International panel layout
- Bracket mounting supports secure installation across varying panel thicknesses
- Reverse polarity protection helps safeguard the instrument in demanding electrical environments
- IP-rated protection supports dependable use in marine and commercial applications
-
