ID
995450
$ 277.55
1-2 weeks delivery time
-
+
The VDO 340-216-005-001C blocking oscillator tachometer and speed sender is a precision generator monitoring sensor from the Alt.2159-50004201 Sensors series, designed to deliver a stable speed signal up to 400 Hz. Built with an M18 x 1.5 male thread for secure mounting, it runs on an 8–15 V stabilized supply and provides a 2-pole insulated return sensor signal via a 4-pole bayonet connector for dependable readings in demanding installations.
- Description
- Ask a Question
-
Blocking Oscillator Speed and Tachometer Sender with M18 Thread
The VDO 340-216-005-001C is a blocking oscillator speed and tachometer sender used for generator monitoring and rotational speed measurement. As part of the Alt.2159-50004201 Sensors series, it produces a precise signal up to 400 Hz and connects through an insulated return output to support stable, noise-resistant instrumentation performance.
Compatibility
- Generator monitoring installations requiring an M18 x 1.5 male threaded sender
- Systems with 8–15 V DC stabilized sensor supply
- Applications using a 4-pole bayonet connector interface
Product Details
- Brand: VDO
- Part Number: 340-216-005-001C
- Component Type: Blocking oscillator tachometer and speed sender
- Series: Alt.2159-50004201 Sensors
- Category: RPM blocking oscillator sensors
- EAN: 4103590690364
- Weight: 0.14 kg
- Packaging: VDO sensor retail package
- Part Status: Phased Out - On Request
Technical Specifications

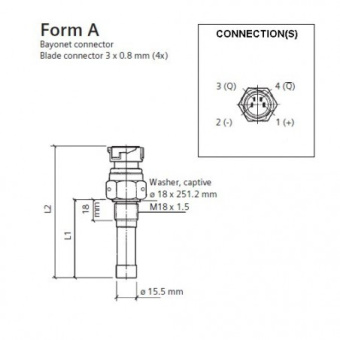

Functionality Blocking oscillator sensor Measurement Range 0–400 Hz Maximum Frequency 400 Hz (24,000 pulses per minute) Operating Voltage 8–15 V DC stabilized Current Consumption 12 mA Signal Output Insulated return Thread M18 x 1.5 male Connector Type 4-pole bayonet Operating Temperature -40°C to +130°C Overall Sender Length (L2) 133 ± 1 mm Sender Element Length Including Thread (L1) 90.2 mm Sender Diameter 15.5 mm Distance Sender to Pulse Generator 0.3 mm to 1.4 mm Duty Cycle (t on + t off) / t on = 1.43 to 3.33
Features
- Blocking oscillator design supports accurate tachometer and speed signal generation for generator monitoring
- Stable 8–15 V DC operation for consistent readings in real-world electrical environments
- Insulated return signal output helps maintain clean signal transmission in complex wiring looms
- M18 x 1.5 male thread provides robust, secure mounting
- 4-pole bayonet connector interface promotes a reliable, vibration-resistant connection
-
