ID
1129657
$ 77.22
1-2 weeks delivery time
-
+

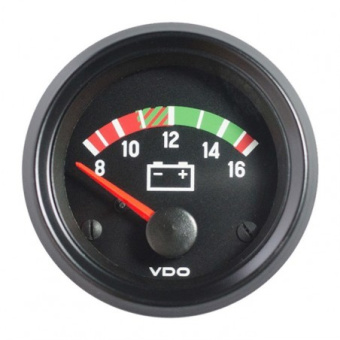

The VDO Cockpit International 332-030-001G voltage gauge is a high-precision 52 mm panel voltmeter built to monitor 12 V battery condition from 8 to 16 V DC. Designed for clear, confident readings, it combines a black dial with a red backlit pointer plus floodlight illumination in white, green, or red for excellent night visibility. With an IP64-rated front for strong environmental protection and AMP male blade connectors for straightforward wiring, this instrument is a reliable fit for automotive, marine, and industrial monitoring panels.
- Description
- Ask a Question
-
VDO Cockpit International 12 V Voltmeter Gauge (8–16 V) in 52 mm Format
Built for dependable electrical system monitoring, the VDO 332-030-001G Cockpit International voltmeter provides a clear, accurate view of 12 V battery voltage across an 8–16 V DC range. Its rugged instrument design, protected front face, and flexible illumination options make it a strong choice for vehicle dashboards, marine helm panels, and industrial control consoles where fast voltage checks help prevent charging and battery issues.
Compatibility
- 12 V battery monitoring in automotive electrical systems
- 12 V battery monitoring in marine electrical systems
- 12 V battery monitoring in industrial electrical systems
- Analog input systems using 0–16 V DC signal
Product Details
- Brand: VDO
- Part Number: 332-030-001G
- Series: Cockpit International
- Component Type: Voltmeter (panel instrument)
- Typical Use: Monitoring battery/charging voltage in 12 V systems
- Connections: AMP male blade connectors
Features
- Wide, useful display range for quick assessment of charging and battery condition (8–16 V DC)
- Excellent readability with black dial, red backlit pointer, and floodlight illumination options (white, green, or red)
- Panel-ready installation with a standard 52 mm mounting hole and compact overall dimensions
- Environmental protection with an IP64-rated front to help resist dust and water exposure
- Durable construction featuring an anti-glare lens and flame-retardant plastic housing
- Electrical protection with reverse polarity protection
Technical Specifications
Measurement Range 8 to 16 V DC Signal Input Analog (0 to 16 V DC) Operating Voltage 11 to 16 V DC Current Consumption (Without Illumination) 67 mA Panel Hole Diameter 52 mm (2 1/16 Inch) Outside Diameter 59.25 mm (2 1/3 Inch) Installation Depth 67.5 mm Connector Type AMP male blade connectors (6.3 x 0.8 mm) Dial Illumination Floodlight illumination (white, green, or red) Pointer Red backlight Deflection Angle 90° Front Protection Class IP64 (DIN 40050), ozone-resistant, UV-resistant Rear Protection Class IP42 (DIN 40050) Operating Temperature -30°C to +85°C Lens Plastic, anti-glare Bezel Model Black triangle (interchangeable with special tool) Housing Flame-retardant plastic Compliance CE, EMC-tested according to EN 13309 and ISO 13766 Country of Origin Malaysia EAN Code 4103590925305 HS Code 90303370 Weight 0.16 kg
Retail Package Contents
- VDO Cockpit International voltmeter (332-030-001G)
- Steel bracket, zinc-plated and chromatized
-
