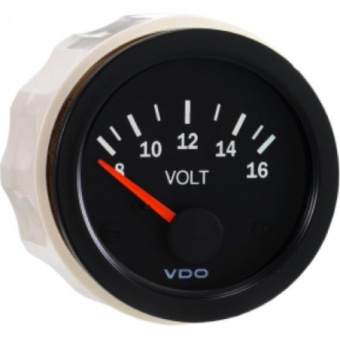

VDO 332-010-001K - Cockpit Vision Voltmeter 8-16V 52mm 12V

VDO 332-010-001K - Cockpit Vision Voltmeter 8-16V 52mm 12V

Key Features:

• Voltmeter range of 8 to 16V DC, perfect for monitoring the voltage of a 12V battery or electrical system.
• 52mm (2 1/16") diameter with a black bezel and red backlit pointer for clear and easy visibility.
• Operating voltage of 12V DC, designed for automotive, marine, and industrial applications.
• Backlight illumination (12V - 2 Watt) in white, green, and red options for clear readability in low-light conditions.
• AMP male blade connectors (6.3 x 0.8mm) for secure and reliable electrical connections.
• Front protection class of IP64 (Ozone proof, UV proof) and rear protection class IP42 for durability in harsh environments.
• Easy installation with a standard 52mm diameter and black triangle bezel (special tool required for bezel change).
• Temperature range: -30°C to +85°C, suitable for various demanding environments.
• CE certified for compliance with safety and quality standards.
• Plastic flame-retardant housing for added safety and durability.

Specifications:

• Part Number: 332-010-001K
• Voltage Measurement Range: 8 - 16V DC
• Operating Voltage: 11 - 16V DC
• Current Consumption (without illumination): 67 mA
• Dial Illumination: Backlight 12V - 2 Watt (White, Green, Red)
• Connector Type: AMP Male blade connector (6.3 x 0.8mm, 2x)
• Dial Colour: Black
• Pointer: Red backlight
• Bezel: Interchangeable black triangle bezel (special tool required)
• Lens: Plastic, single, non-reflective, anti-glare
• IP Rating: Front - IP64 (Ozone proof, UV proof), Rear - IP42
• Housing: Plastic flame retardant
• Packaging: VDO Instrument retail package
• Country of Origin: Malaysia
• Operating Temperature: -30°C to +85°C
• Mechanical Shock Resistance: Max 1G - 25Hz - 2000Hz (8 hours)
• EMC Test: According to EN 13309 and ISO 13766
• CE Standard: Yes

Compatibility and Application:

• Ideal for VDO engine monitoring systems to monitor voltage levels in vehicles, boats, and industrial equipment.
• Compatible with 12V DC systems, making it suitable for use in most automotive, marine, and off-grid electrical setups.
• Perfect for ensuring proper battery voltage, helping to prevent system failures due to under-voltage or over-voltage conditions.

Benefits:

• Reliable voltage monitoring with a wide range (8 - 16V), helping maintain proper battery health and electrical system performance.
• Backlit dial with multiple colour options enhances readability in various lighting conditions.
• Durable design with IP64 rating ensures protection against dust and water, ideal for use in harsh environments.
• Simple installation and interchangeable bezel for easy fitting into standard dashboards and control panels.
• Accurate and consistent performance, certified to meet safety and quality standards (CE).
• Long-lasting and robust construction with flame retardant housing and high shock resistance for peace of mind in demanding environments.
