The VDO Cockpit International engine hours counter 331-810-012-002G is a rugged 52 mm panel instrument for accurate engine run-time tracking in automotive, industrial, and marine engine monitoring systems. Operating on 11–16V DC, it records 0–99999.9 hours with a clear black dial and white digits, helping you plan maintenance intervals confidently, while reverse polarity protection and IP64-rated front sealing support dependable use in harsh environments.
- Description
- Ask a Question
-

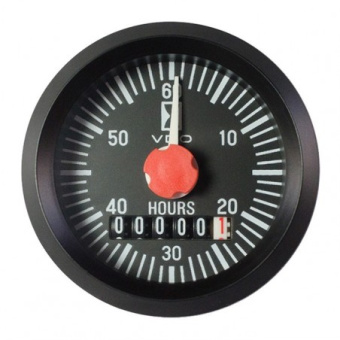

Cockpit International 52 mm 12V Engine Hours Counter
Built for dependable engine monitoring, the VDO 331-810-012-002G Cockpit International engine hours counter tracks total engine operating time to support maintenance planning and service interval management. Designed for a standard 52 mm panel opening and powered by 11–16V DC, it suits demanding automotive, industrial, and marine installations where clear readout and durable front sealing matter.
Compatibility
- Automotive applications
- Industrial applications
- Marine applications
- 12V DC electrical systems (11–16V DC operating range)
Product Details
- Brand: VDO
- Series: Cockpit International
- Component Type: Engine hours counter
- System Use: Engine monitoring and maintenance intervals
- Signal Input: Ignition switch positive
- Country of Origin: Malaysia
- Retail Package Contents: Engine hours counter, spinlock nut
Features
- Tracks total engine running time to help manage preventive maintenance and service scheduling
- High readability display with black dial and white digits
- Reverse polarity protection for safer installation and operation
- IP64 rated front protection for resistance to dust and water, with UV and ozone resistance
- Low electrical draw with < 10 mA current consumption (without illumination)
Technical Specifications
Part Number 331-810-012-002G Measurement Range 0 – 99999.9 hours (with minute pointer) Accuracy ± 5 seconds per day at room temperature Operating Voltage 11 – 16V DC Current Consumption (Without Illumination) < 10 mA Panel Hole Diameter 52 mm (2 1/16 in) Outside Diameter 59.25 mm (2 1/3 in) Installation Depth 53 mm Locking Height with Spinlock Nut 0.5 – 20 mm Front Protection Class IP64 (DIN 40050), UV resistant, ozone resistant Rear Protection Class IP42 (DIN 40050) Operating Temperature -30°C to +85°C Connection AMP male blade connector 6.3 x 0.8 mm (2x) Dial 6 digits Dial Color Black Digits White Lens Single anti-glare plastic Bezel Triangular black, threaded ring (interchangeable; special tool required) Nominal Position NL 0 to NL 90 (DIN 16257) Reverse Polarity Protection Yes CE Standard Yes Mechanical Shock Max 1G at 25Hz – 2000Hz for 8 hours EMC Test According to EN 13309 and ISO 13766 EAN Code 4103590690203 HS Code 90291000 Weight 0.13 kg -
