ID
1369861
$ 100.07
1-2 weeks delivery time
-
+

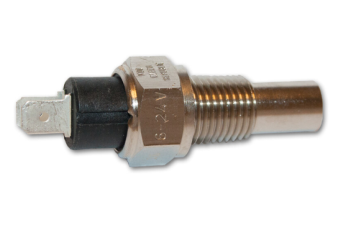

The VDO 325-805-003-001C temperature sender is a high-precision coolant and fluid temperature sensor built for VDO engine monitoring systems, delivering an accurate analog resistance signal across +40°C to +120°C. With a dual-pole insulated return for isolated, reliable signal transmission, a 1/4-18 NPTF male thread for secure installation, and 6–24 V DC operation, it supports dependable temperature monitoring for coolant, water, air, engine oil, transmission oil, and fuel in demanding operating conditions.
- Description
- Ask a Question
-
VDO Temperature Sender for Engine Monitoring Systems
The VDO 325-805-003-001C is a coolant temperature sender engineered to provide stable, accurate temperature feedback for VDO engine monitoring systems. Designed for multi-medium measurement (including coolant, water, air, engine oil, transmission oil, and fuel), it outputs an analog resistance signal and uses a dual-pole insulated return to help maintain clean, isolated signal transmission in electrically noisy environments.
Compatibility
- VDO engine monitoring systems
- Coolant temperature measurement
- Water temperature measurement
- Air temperature measurement
- Engine oil temperature measurement
- Transmission oil temperature measurement
- Fuel temperature measurement
Product Details
- Brand: VDO
- Part Number: 325-805-003-001C
- Component Type: Coolant temperature sender
- Signal Type: Dual-pole insulated return (analog)
- Warning Contact: None
- Optional Warning Contact: VDO A2C59510886 makepoint switch
Technical Specifications

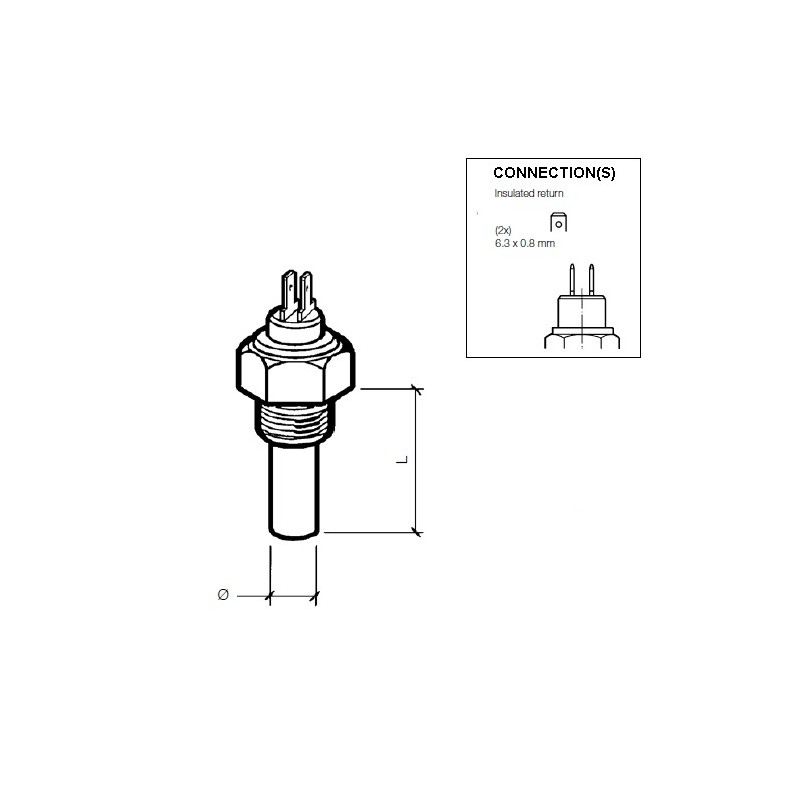

Temperature Measurement Range +40°C to +120°C (40°C to 120°C; 100°F to 250°F) Operating Temperature -30°C to +150°C Thread 1/4-18 NPTF male Operating Voltage 6–24 V DC Sender Resistance Range 147.5–11.5 Ohm Resistance at 90°C 25.6 Ohm Resistance at 100°C 19.25 Ohm ± 1.99 Ohm Connector Type AMP male 6.3 x 0.8 mm Sender Element Length Plus Thread 29 mm Sensor Diameter 10.9 mm Torque 20 Nm Packaging VDO sensor retail package Country of Origin Czech Republic EAN 4103590690173 HS Code 90259000 Weight 0.04 kg Type of Connection G Alternative Notation 325 805 003 001C; 325/805/3/1C Catalog Reference VDO 2014 Vehicle Electronics Catalog, page 138–139; VDO table 19
Features
- Accurately tracks fluid and air temperatures to support safe engine and drivetrain operation
- Dual-pole insulated return helps maintain dependable readings with isolated signal transmission
- 1/4-18 NPTF threaded design supports a secure, service-friendly installation
- Analog resistance output designed for integration with VDO engine monitoring instrumentation
- Built for demanding environments with a wide operating temperature capability
-
