VDO 323-803-001-001D - Coolant Temperature Sender 120°C - M14

VDO 323-803-001-001D - Coolant Temperature Sender 120°C - M14

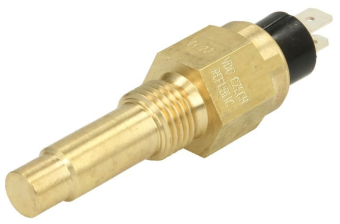

The VDO 323-803-001-001D Coolant Temperature Sender is a highly reliable sensor designed to monitor coolant temperature in automotive and industrial applications. With a temperature range of +40°C to +120°C, it ensures accurate readings for engine and system temperature control. Featuring an M14 x 1.5 threaded connection, this sender is ideal for integration into various cooling systems. The sender is equipped with a single-pole common ground sensor signal and a warning contact that activates at 100°C ± 3°C, helping to alert when the temperature exceeds safe levels. It operates on a voltage range of 6-24 V DC and has a resistor range of 287.4 - 22.7 Ohms. The VDO Coolant Temperature Sender is designed for a wide range of temperature mediums, including coolant, water, engine oil, transmission oil, and fuel, offering versatility across different systems.

Key Features:

• Temperature range: +40°C to +120°C for precise coolant temperature measurement
• Warning contact activates at 100°C ± 3°C to help prevent overheating
• Thread size: M14 x 1.5 for easy installation in compatible systems
• Sensor signal: 1-pole common ground for reliable signal transmission
• Resistor range: 287.4 - 22.7 Ohms for accurate resistance-based temperature readings
• Connector: AMP Male 6.3 x 0.8 mm for the temperature sensor, AMP Male 4.8 x 0.8 mm for the warning contact
• Temperature medium compatibility: Coolant, water, engine oil, transmission oil, fuel
• Operating voltage: 6-24 V DC for broad system compatibility
• Made in Czech Republic, ensuring high-quality manufacturing

Specifications:

• Temperature Measurement Range: +40°C to +120°C
• Warning Contact: Activates at 100°C ± 3°C
• Resistor Range: 287.4 - 22.7 Ohm
• Operating Voltage: 6 - 24 V DC
• Thread: M14 x 1.5 Male
• Sender Element Length + Thread (L): 40 mm
• Sensor Diameter: 10.8 mm
• Torque: 20 Nm for secure installation
• Warning Contact Switching Capacity: 1.2 - 3 Watt (non-inductive)
• Warning Contact Features: Contact closes with rising temperature
• Temperature Medium Compatibility: Coolant, water, engine oil, transmission oil, fuel
• Connector Type: AMP Male 6.3 x 0.8 mm for temperature sensor, AMP Male 4.8 x 0.8 mm for warning contact
• Country of Origin: Czech Republic
• Packaging: VDO Sensor retail package (1 unit)
• Signal Output: 287.4 - 22.7 Ohm
• Category: Temperature sensors

Compatibility:

This coolant temperature sender is designed for use in a variety of engine monitoring systems. It is compatible with cooling systems using coolant, water, engine oil, transmission oil, or fuel as the temperature medium, making it ideal for use in automotive, marine, and industrial applications.

Benefits:

• Ensures accurate and reliable temperature monitoring for engine and system protection
• Warning contact at 100°C provides a safety feature for overheating prevention
• Versatile temperature medium compatibility across different applications
• Wide operating voltage range (6-24 V DC) for integration into various systems
• Durable design with easy installation thanks to M14 x 1.5 thread size
• Made in Czech Republic, ensuring high-quality manufacturing standards
