ID
1176669
$ 116.93
1-2 weeks delivery time
-
+
The VDO 323-803-001-011D coolant temperature sensing unit provides precise temperature monitoring from +40°C to +120°C with an integrated warning contact that closes at 95°C ± 3°C to support overheat protection. Designed for automotive, marine, and industrial systems, it uses a single-pole common ground signal (287.4–22.7 Ohm) and operates on 6–24 V DC, with a 5/8-18 NF-3 threaded mounting for secure installation in applications using coolant, water, air, engine oil, transmission oil, or fuel.
- Description
- Ask a Question
-

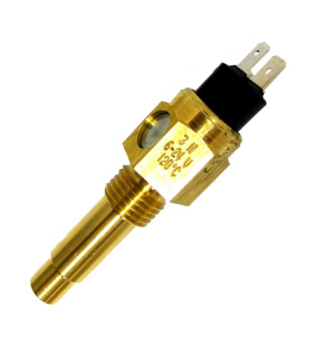

VDO 323-803-001-011D Temperature Sender for Monitoring and Overheat Warning
The VDO 323-803-001-011D is a coolant temperature sender engineered to deliver stable, accurate temperature feedback for gauges and control systems, while also adding a dedicated warning contact for safety-critical overtemperature alerting. Built for demanding automotive, marine, and industrial environments, it supports temperature monitoring in systems carrying coolant, water, air, engine oil, transmission oil, and fuel.
Compatibility
- Automotive applications
- Marine applications
- Industrial applications
- Engines
- Transmissions
- Fuel systems requiring temperature monitoring
- Systems using coolant
- Systems using water
- Systems using air
- Systems using engine oil
- Systems using transmission oil
- Systems using fuel
Product Details
- Brand: VDO
- Part Number: 323-803-001-011D
- Component Type: Coolant temperature sender with warning contact
- Signal Type: Single-pole common ground
- Communication: Analog
- Packaging: VDO sensor retail package
- EAN Code: 4103590689863
- Weight: 0.01 kg
Features
- Accurate temperature monitoring for instrumentation and control systems
- Integrated warning contact that closes with rising temperature to support overheat alerts
- Broad operating voltage range for mixed 12 V and 24 V installations
- Designed for harsh environments with a wide operating temperature range
- Compact form factor for straightforward integration in tight engine-room or equipment layouts
Technical Specifications
Temperature Measuring Range +40°C to +120°C Operating Temperature Range -40°C to +150°C Thread 5/8-18 NF-3 Sender Element Length Plus Thread (L) 40 mm Sensor Diameter 10.8 mm Installation Torque 20 Nm Operating Voltage 6 - 24 V DC Resistance Range 287.4 - 22.7 Ohm Resistance at 100°C 38.47 Ohm ± 2.98 Ohm Warning Contact Trigger 95°C ± 3°C Warning Contact Switching Capacity 1.2 - 3 W (non-inductive) Temperature Sender Connector AMP Male 6.3 x 0.8 mm Warning Contact Connector AMP Male 4.8 x 0.8 mm Compatible Media Coolant, water, air, engine oil, transmission oil, fuel Type of Connection A Reference Catalog VDO 2014 Vehicle Electronics Catalog, pages 142 - 143 -
