ID
1176668
$ 169.62
1-2 weeks delivery time
-
+

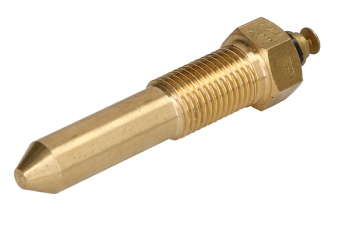

The VDO 323-801-028-001C oil temperature sending unit is a high-range, precision sensor for automotive and industrial fluid-temperature monitoring, covering -40°C to +250°C with two measuring points for dependable readings. Built for engine monitoring and instrumentation, it supports temperature measurement for engine oil, coolant, fuel, transmission oil, water, and air, using an M14 x 1.5 thread for secure installation and a single-pole common ground analog signal (18.9 Ohm at 210°C) across a 6–24 V DC operating range.
- Description
- Ask a Question
-
High-Range Oil and Fluid Temperature Sending Unit (M14 x 1.5)
The VDO 323-801-028-001C is a special-version oil temperature sender designed for accurate temperature feedback in automotive and industrial monitoring circuits. With two measuring points and an operating range from -40°C to +250°C, it supports reliable temperature tracking for critical media such as engine oil, coolant, transmission oil, fuel, water, and air. Its M14 x 1.5 thread and single-pole common ground analog output make it a practical choice for robust engine and system instrumentation.
Compatibility
- Automotive applications
- Industrial applications
- VDO engine monitoring systems
- Systems using an M14 x 1.5 temperature sender
- Temperature measurement for coolant
- Temperature measurement for water
- Temperature measurement for air
- Temperature measurement for engine oil
- Temperature measurement for transmission oil
- Temperature measurement for fuel
Product Details
- Brand: VDO
- Part Number: 323-801-028-001C
- Component Type: Oil temperature sender (temperature sensor)
- System Role: Provides an analog temperature signal for gauges and monitoring electronics, supporting engine protection and efficiency through accurate fluid-temperature tracking.
- Package: VDO sensor retail package
Features
- Wide temperature capability from -40°C to +250°C for demanding monitoring points
- Two measuring points for enhanced temperature sensing behavior in critical fluids
- M14 x 1.5 threaded fit for secure installation
- Single-pole common ground signal design for stable analog measurement systems
- Designed for multi-media use: coolant, water, air, engine oil, transmission oil, and fuel
- No warning contact; optional warning contact via VDO A2C59510886 makepoint switch
Technical Specifications
Temperature Measuring Range 250°C (two measuring points) Operating Temperature Range -40°C to +250°C Thread M14 x 1.5 Operating Voltage 6–24 V DC Output Type Analog Resistance Value 18.9 Ohm at 210°C Signal Single-pole common ground Warning Contact None Optional Warning Contact VDO A2C59510886 makepoint switch Connector Type AMP male T-model (blade) 6.3 x 0.8 mm Sender Element Length Plus Thread (L) 79.5 mm Sensor Diameter 11.8 mm Installation Torque 20 Nm EAN 4103590693419 HS Code 90259000 Weight 0.05 kg Country of Origin Czech Republic Alternative Notation 323 801 028 001C; 323/801/28/1C -
