The VDO 323-803-001-006D coolant temperature sensing unit supports stable engine temperature control by providing an analog resistance signal (287.4–22.7 Ohm) across a +40°C to +120°C measuring range, with an integrated warning contact that switches at 96°C ± 3°C. Built for straightforward installation via an M14 x 1.5 thread and designed around a 1-pole common-ground signal, it is a dependable choice for cooling-system instrumentation and protection across a wide range of temperature media including coolant, water, air, engine oil, transmission oil, and fuel.
- Description
- Ask a Question
-
VDO Coolant Temperature Sensing Unit With Warning Contact
The VDO 323-803-001-006D is a coolant temperature sender designed to deliver dependable temperature feedback for vehicle instrumentation and thermal protection strategies. It measures from +40°C to +120°C and outputs an analog resistance signal suitable for gauge and monitoring systems, while the built-in warning contact provides an additional safeguard by switching at 96°C ± 3°C. With its M14 x 1.5 thread, the sender installs cleanly into compatible ports to help maintain consistent engine operating temperatures.
Compatibility
- Automotive cooling systems requiring an M14 x 1.5 coolant temperature sender
Product Details
- Brand: VDO
- Part Number: 323-803-001-006D
- Component Type: Coolant Temperature Sender
- Temperature Sensor Signal: Single-pole common ground
- Temperature Medium: Coolant, water, air, engine oil, transmission oil, fuel
Technical Specifications

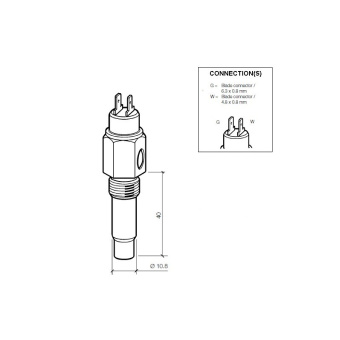

Temperature Measuring Range +40°C to +120°C Minimum to Maximum Operating Temperature -40°C to +150°C Thread M14 x 1.5 Sender Element Length Plus Thread (L) 40 mm Sensor Diameter 10.8 mm Torque 20 Nm Operating Voltage 6 - 24 V DC Resistance Range 287.4 - 22.7 Ohm Warning Contact 96°C ± 3°C Warning Contact Switching Capacity 1.2 - 3 Watt non-inductive Warning Contact Behavior Contact closes with rising temperature Temperature Sender Connector AMP Male 6.3 x 0.8 mm Warning Contact Connector AMP Male 4.8 x 0.8 mm Temperature at 100°C to Resistance 100°C = 38.47 Ohm ± 2.98 Ohm EAN Code 4103590693440 Weight 0.10 kg Type of Connection A Communication Analog
Features
- Accurate coolant temperature monitoring for stable engine thermal management
- Integrated warning contact for over-temperature alert strategies
- Analog resistance output suited to many gauge and monitoring circuits
- M14 x 1.5 threaded fitment supports secure installation in compatible ports
- Designed for operation with multiple temperature media including coolant and oils
-
