ID
1129630
$ 135.51
1-2 weeks delivery time
-
+

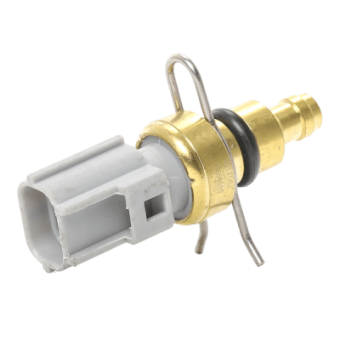

The VDO 323-803-001-009D temperature sender is a multi-purpose 120°C sensing unit for vehicle temperature monitoring, designed to provide an analog resistance signal with single-pole common ground and an integrated overtemperature warning contact. Built with an M14 x 1.5 thread and specified for media including coolant, water, air, engine oil, transmission oil, and fuel, it supports reliable temperature feedback for gauges and warning circuits, operating on 6–24 V DC with the warning contact switching at 102°C ± 3°C.
- Description
- Ask a Question
-
VDO Coolant Temperature Sensing Unit with Warning Contact
The VDO 323-803-001-009D is an analog coolant temperature sender designed for vehicle temperature monitoring and warning functions. Installed via its M14 x 1.5 thread, it measures from +40°C to +120°C and includes a warning contact that closes as temperature rises, helping drivers and systems react quickly to overheating conditions.
Compatibility
- Various automotive applications
Technical Specifications
Part Number 323-803-001-009D Temperature Measuring Range +40°C to +120°C Minimum to Maximum Operating Temperature -40°C to +150°C Thread M14 x 1.5 (male) Sender Element Length with Thread 40 mm Sensor Diameter 10.8 mm Installation Torque 20 Nm Temperature Media Coolant, water, air, engine oil, transmission oil, fuel Operating Voltage 6–24 V DC Resistance Range 287.4–22.7 Ohm Resistance at 100°C 38.47 Ohm ± 2.98 Ohm Sensor Signal Single-pole common ground Warning Contact Switching Temperature 102°C ± 3°C Warning Contact Switching Capacity 1.2–3 Watt (non-inductive) Warning Contact Function Contact closes with rising temperature Temperature Sender Connector AMP male 6.3 x 0.8 mm Warning Contact Connector AMP male 4.8 x 0.8 mm Warning Contact Connector Type AMP male 6.3 x 0.8 mm EAN Code 4103590689856 Weight 0.05 kg
Product Details
- Brand: VDO
- Component Type: Coolant temperature sender with warning contact
- Typical System Location: Engine cooling and temperature monitoring circuit
- Signal Type: Analog resistance output for gauge or monitoring electronics
- Packaging: VDO sensor retail package
Features
- Measures temperature for monitoring of coolant and other specified media
- Integrated warning contact supports overtemperature alerting at 102°C ± 3°C
- Single-pole common ground design suits many classic and modern vehicle gauge circuits
- M14 x 1.5 threaded fitment for secure installation in housings, pipes, or adapters designed for this thread
-
