The VDO 323-801-003-001D oil temperature sensing unit provides stable, accurate temperature feedback for engine monitoring systems across automotive and industrial applications. Designed to measure temperatures from +50°C to +200°C (with operating limits from -70°C to +250°C), it supports monitoring of engine oil, transmission oil, coolant, water, air, and fuel, using an analog resistance output (482.5–14.3 Ohm) on 6–24 V DC. Its M10 x 1.5 thread and single-pole common-ground signal make it a practical choice for clean integration where no built-in warning contact is required, with an optional makepoint switch available.
- Description
- Ask a Question
-

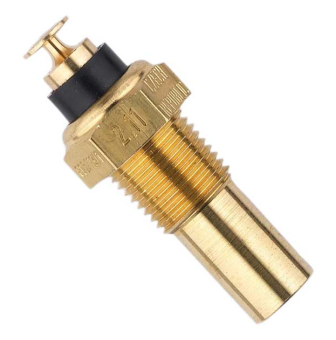

VDO Oil Temperature Sensing Unit 200°C with M10 x 1.5 Thread
The VDO 323-801-003-001D is an oil temperature sender built for dependable temperature monitoring in engine instrumentation and monitoring systems. It delivers an analog resistance signal for dashboards or control systems and is suitable for a wide range of temperature media including engine oil, transmission oil, coolant, water, air, and fuel. With an M10 x 1.5 thread and a compact sensing element, it installs easily in many automotive and industrial temperature measurement points.
Compatibility
- Automotive engine monitoring systems
- Industrial engine monitoring systems
- Engine oil temperature measurement
- Transmission oil temperature measurement
- Coolant temperature measurement
- Water temperature measurement
- Air temperature measurement
- Fuel temperature measurement
Technical Specifications
Part Number 323-801-003-001D Temperature Measurement Range +50°C to +200°C Minimum to Maximum Operating Temperature -70°C to +250°C Operating Voltage 6–24 V DC Resistance Range 482.5–14.3 Ohm Signal Type Analog, single-pole common ground Thread M10 x 1.5 Sender Element Length Plus Thread 22 mm Sensor Diameter 6.9 mm Installation Torque 10 Nm Connector AMP male T-model 6.3 x 0.8 mm Warning Contact None Optional Warning Contact VDO A2C59510886 makepoint switch Resistance at 100°C 148.81 Ohm ± 15.16 Ohm Type of Connection C EAN Code 4103590925411 Country of Origin Czech Republic Warranty 2 years Catalog Reference VDO 2014 Vehicle Electronics Catalog, page 136–137 Table Reference VDO table: 12
Product Details
- Brand: VDO
- Component Type: Oil temperature sender
- Signal Output: Analog resistance signal for instrument/gauge or monitoring system input
- Packaging: VDO sensor retail package
Features
- Accurate temperature tracking for protective engine and drivetrain monitoring
- Wide electrical compatibility thanks to 6–24 V DC operation
- Single-pole common-ground signal simplifies integration into many analog gauge systems
- M10 x 1.5 threaded fit supports secure installation in common measurement ports
- Optional makepoint switch support for setups that require an added warning function
-
