The VDO 323-803-002-020D oil temperature sensing unit provides stable, accurate temperature feedback for engine and transmission monitoring, measuring from +50°C to +150°C and operating from -40°C to +180°C. Built with an M14 x 1.5 thread for secure installation, it supports a 6–24 V DC electrical system with a 322.8–18.6 Ohm resistance curve and a single-pole common-ground signal, plus an integrated warning contact that closes at 110°C ± 3°C to help protect critical lubricated components under heavy load.
- Description
- Ask a Question
-

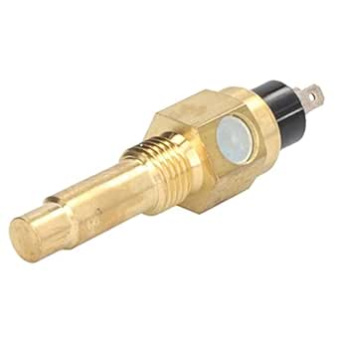

VDO Oil Temperature Sensor with Warning Contact
The VDO 323-803-002-020D is an oil temperature sender developed for engine monitoring where dependable thermal feedback helps protect lubricated components and supports consistent performance. With an integrated warning contact and an analog resistance output, it is well suited for dashboard instrumentation or monitoring systems across a wide range of operating conditions.
Compatibility
- Coolant
- Water
- Air
- Engine oil
- Transmission oil
- Fuel
- VDO engine monitoring applications
Technical Specifications
Part number 323-803-002-020D Temperature measuring range +50°C to +150°C Operating temperature (min to max) -40°C to +180°C Thread M14 x 1.5 Sender element length plus thread (L) 40 mm Sensor diameter 10.8 mm Installation torque 20 Nm Operating voltage 6–24 V DC Resistance range 322.8–18.6 Ohm Sensor signal Single-pole common ground Warning contact activation 110°C ± 3°C Warning contact switching capacity 1.2–3 Watt non-inductive Warning contact behavior Contact closes with rising temperature Temperature sender connector AMP male 6.3 x 0.8 mm Warning contact connector AMP male 4.8 x 0.8 mm Type of connection A Resistance at 100°C 61.92 Ohm ± 5.49 Ohm HS code 90259000 EAN 4103590690012 Weight 0.06 kg Country of origin Czech Republic Alternative notation 323 803 002 020D / 323/803/2/20D
Product Details
- Brand: VDO
- Component type: Oil temperature sender
- Primary use: Engine and transmission oil temperature monitoring
- Packaging: VDO sensor retail package
Features
- Analog temperature sender designed for reliable gauge or monitoring-system input
- Integrated warning contact provides an additional over-temperature safety signal
- M14 x 1.5 threaded fit supports secure installation in suitable ports
- Compatible with multiple temperature media including oils, coolant, water, air, and fuel
- Supplied without connecting hardware
-
