ID
1369860
$ 57.79
1-2 weeks delivery time
-
+
The VDO 323-805-001-005N temperature sender provides stable, accurate temperature feedback for engine monitoring in automotive, marine, and industrial systems, measuring from +40°C to +120°C with dual-pole insulated return signal output. Built with a 3/8-18 NPTF thread and an analog resistance curve (287.4–22.7 Ohm), it supports reliable readings across multiple media including coolant, water, air, engine oil, transmission oil, and fuel, while operating on 6–24 V DC for flexible integration into vehicles and equipment.
- Description
- Ask a Question
-

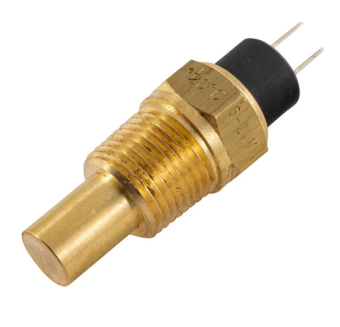

VDO 323-805-001-005N Temperature Sender for Coolant and Fluid Monitoring
The VDO 323-805-001-005N is a compact, durable coolant temperature sender designed for dependable engine and system temperature monitoring. Using a dual-pole insulated return signal, it helps deliver stable readings to compatible instruments and monitoring systems across automotive, marine, and industrial applications. Its 3/8-18 NPTF thread supports secure installation, and the sender is suitable for use with coolant and other temperature-sensitive fluids such as oils and fuel.
Compatibility
- Automotive applications
- Marine applications
- Industrial applications
- Engine monitoring systems
- Transmission monitoring systems
- Fluid systems requiring temperature monitoring
- Coolant
- Water
- Air
- Engine oil
- Transmission oil
- Fuel
Product Details
- Brand: VDO
- Part Number: 323-805-001-005N
- Component Type: Coolant temperature sender
- System Use: Engine monitoring and temperature-sensitive fluid monitoring
- Signal Design: Dual-pole insulated return for stable electrical performance
- Warning Contact: None (optional makepoint switch: VDO A2C59510886)

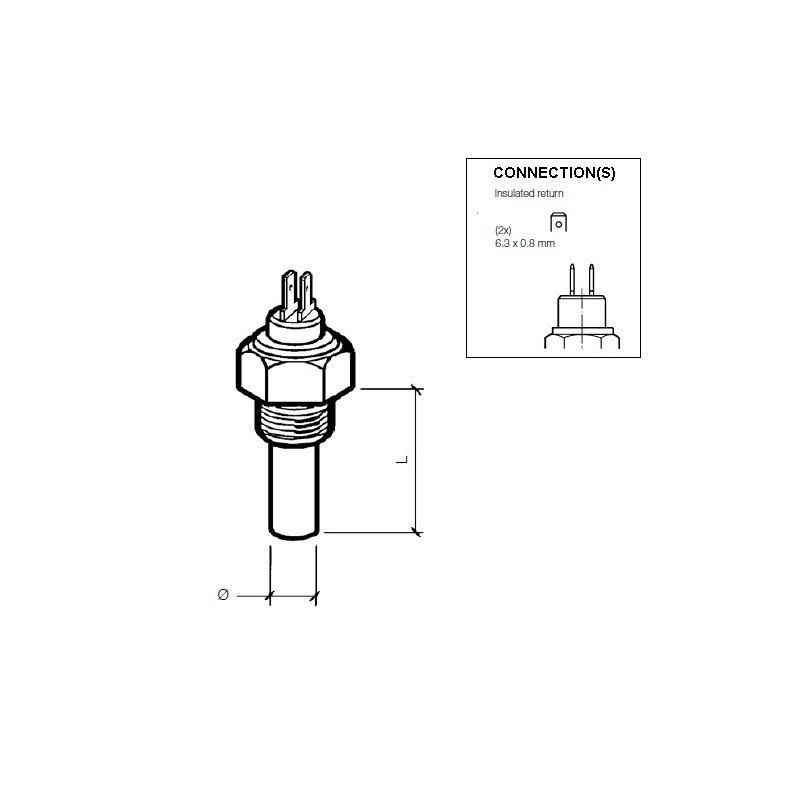

Technical Specifications
Temperature Measuring Range +40°C to +120°C Operating Temperature Range -40°C to +150°C Thread 3/8-18 NPTF Sender Element Length + Thread (L) 29 mm Sensor Diameter 11 mm Tightening Torque 30 Nm Operating Voltage 6–24 V DC Resistance Range 287.4–22.7 Ohm Resistance at 100°C 38.47 Ohm ± 2.98 Ohm Signal Type Dual-pole insulated return Connector AMP male 6.3 x 0.8 mm Communication Analog Type of Connection G HS Code 90259000 EAN Code 4103590690074 Weight 0.05 kg Country of Origin Czech Republic Catalog Reference VDO 2014 Vehicle Electronics Catalog, page 138–139 Reference Table VDO temperature senders table 1 Alternative Notation 323 805 001 005N; 323/805/1/5N
Features
- Accurate temperature monitoring across the +40°C to +120°C measurement range
- Designed for harsh environments with -40°C to +150°C operating capability
- Dual-pole insulated return signal supports stable, reliable instrument readings
- Works with multiple media, including coolant, water, air, engine oil, transmission oil, and fuel
- Compact dimensions help simplify installation where space is limited
- Optional integration with a makepoint switch (VDO A2C59510886) for expanded functionality
-
