The VDO 323-805-001-001K coolant temperature sensing unit is built for dependable engine temperature monitoring in automotive cooling systems, providing stable analog readings from +40°C to +120°C without a warning contact. Designed with an M14 x 1.5 thread and a 2-pole insulated return signal, it supports accurate gauge and engine monitoring performance across 6–24 V DC systems, using a 287.4–22.7 Ohm resistance curve for consistent temperature-to-signal conversion.
- Description
- Ask a Question
-

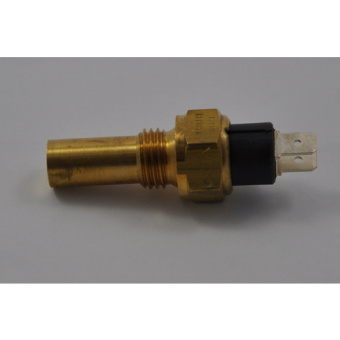

VDO Coolant Temperature Sensing Unit 120°C M14 x 1.5
The VDO 323-805-001-001K is a coolant temperature sender for VDO engine monitoring, designed to provide reliable analog temperature feedback to instrumentation or monitoring electronics. Installed into the cooling circuit via its M14 x 1.5 thread, it delivers a stable signal using a dual-pole insulated return layout and is configured without a warning contact for straightforward temperature indication.
Compatibility
- VDO engine monitoring applications
- Automotive cooling and temperature monitoring systems
Product Details
- Brand: VDO
- Part Number: 323-805-001-001K
- Component Type: Coolant Temperature Sender
- Function: Coolant temperature measurement
- Thread: M14 x 1.5 (male)
- Sensor signal: Dual-pole insulated return
- Warning contact: None
Technical Specifications

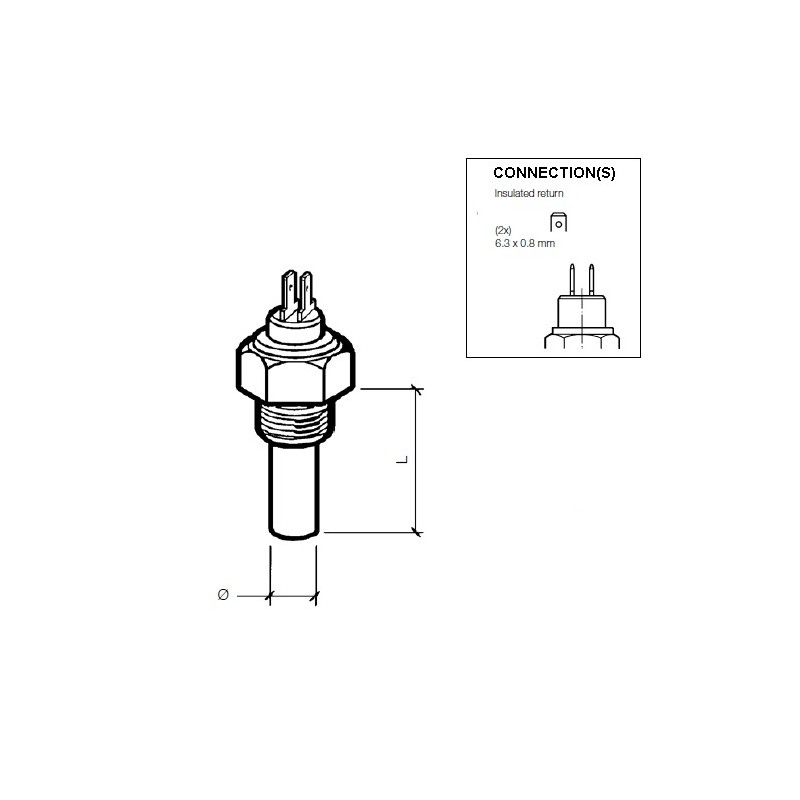

Temperature measuring range +40 °C to +120 °C Minimum to maximum operating temperature -40 °C to +150 °C Operating voltage 6 - 24 V DC Resistance range 287.4 - 22.7 Ohm Resistance at 100 °C 38.47 Ohm ± 2.98 Ohm Sensor connector AMP male 6.3 x 0.8 mm Connector type AMP blade 6.3 x 0.8 mm Sender element length plus thread 29 mm Sensor diameter 11 mm Recommended torque 20 Nm Temperature media Coolant, water, air, engine oil, transmission oil, fuel Type of connection G Optional warning contact VDO A2C59510886 makepoint switch HS Code 90259000 EAN Code 4103590949394 Weight 0.04 kg Country of origin Czech Republic Alternative notation 323 805 001 001K; 323/805/1/1K Catalog reference VDO 2014 Vehicle Electronics Catalog, page 138 - 139 Reference table VDO table: 1
Features
- Accurate analog coolant-temperature feedback for gauges and engine monitoring electronics
- Dual-pole insulated return design for stable signal integrity
- M14 x 1.5 threaded fitment for clean integration into the cooling circuit
- Configured without a warning contact for direct, uncomplicated temperature indication
Package Contents
- VDO 323-805-001-001K temperature sender (retail package)
- Delivered without connecting material unless otherwise noted
-
