The VDO 323-803-002-010C oil temperature sensing unit provides precise thermal feedback across +50°C to +150°C to support dependable engine monitoring and overheating prevention. Built for installation via an M14 x 1.5 thread, it outputs an analog resistance signal (322.8–18.6 Ohm) and works on 6–24 V DC, making it a versatile choice for engine oil, coolant, and fuel temperature monitoring. An integrated warning contact switches at 135°C ± 3°C to trigger an alert when temperatures climb toward critical levels.
- Description
- Ask a Question
-

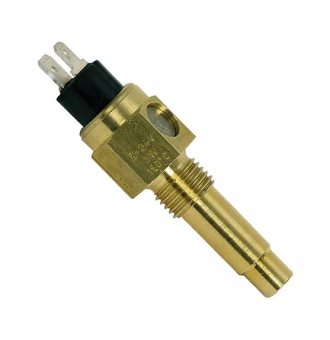

VDO Oil Temperature Sensing Unit with Warning Contact
The VDO 323-803-002-010C is an analog oil temperature sender designed for accurate temperature monitoring in vehicle and machinery systems. Installed directly into the circuit using its M14 x 1.5 threaded body, it helps drivers and operators track operating temperatures and react early to overheating. A built-in warning contact closes as temperature rises, providing a clear alarm trigger at elevated temperatures.
Compatibility
- Engine oil temperature monitoring
- Transmission oil temperature monitoring
- Coolant and water temperature monitoring
- Fuel temperature monitoring
- Air temperature monitoring
Technical Specifications
Part Number 323-803-002-010C Temperature Measurement Range +50°C to +150°C Operating Temperature -40°C to +180°C Thread M14 x 1.5 (male) Sender Resistance Range 322.8 - 18.6 Ohm Operating Voltage 6 - 24 V DC Signal Type Single-pole common ground Warning Contact Switching Temperature 135°C ± 3°C Warning Contact Switching Capacity 1.2 - 3 W (non-inductive) Warning Contact Action Contact closes with rising temperature Sender Connector AMP male 6.3 x 0.8 mm Warning Contact Connector AMP male 4.8 x 0.8 mm Length 40 mm Sensor Diameter 10.8 mm Tightening Torque 20 Nm EAN Code 4103590689993 HS Code 90259000 Packaging VDO sensor retail package Country of Origin Czech Republic
Product Details
- Brand: VDO
- Component Type: Oil temperature sender with warning contact
- Typical Installation Point: Threaded into an engine or system temperature port to measure fluid temperature directly
Features
- Accurate analog temperature feedback for gauges and monitoring systems
- Integrated over-temperature warning contact for fast driver/operator alerting
- Wide operating voltage range (6–24 V DC) for many electrical system architectures
- Suitable for multiple temperature media including engine oil, transmission oil, coolant, water, air, and fuel
-
